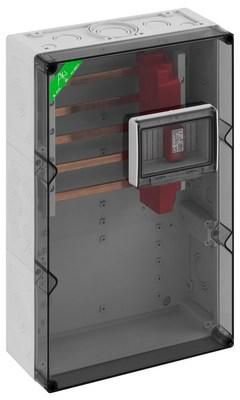

Surge protection housing, industrial quality, 5-pole, 40mm busbar spacing, with CU rails, L1...L3: 12 x 5mm, PE/N: 12 x 5mm, with 10 busbar terminals for CU conductors 4-35mm², with hinged window 6 TE, with transparent cover, sealable, with lightning current and surge arrester type 1+2 according to EN 61643-11 for main power supply systems, network type TT/TNS, for use in buildings without external lightning protection, lightning current: (10/350) 7.5/30kA, highest continuous voltage: 255 V AC, max. permissible backup fuse: 160A gG, mounted ready for connection on busbar systemDimensions: 300 x 450 x 150mm
| Property | Value |
| Highest continuous voltage AC: | 255 V |
| Lightning impulse current (10/350 µs): | 30 kA |
| Test class: | Type 1 and 2 |
| Number of poles: | 5 |
| Rated voltage AC: | 230 V |
| Size: | 3 TE |
| Remote signaling: | no |
| Signaling on the device: | optical |
| Network type TN-CS: | no |
| Network type DC: | no |
| Network type TN: | no |
| Energetically coordinated protection effect for the end device: | yes |
| Mounting type: | pre-assembled in the housing |
| Network type TT: | yes |
| Integrated backup fuse: | no |
| Follow current extinguishing capacity: | 25 kA |
| Max. conductor cross-section, rigid (single/multi-wire): | 50 mm² |
| Max. Conductor cross-section flexible (fine-stranded): | 35 mm² |
| Network type other: | no |
| Protection level LN: | 1.5 kV |
| Network type TN-C: | no |
| Network type IT: | no |
| Network type TN-S: | yes |
| Protection level L-PE: | 2.2 kV |
| Protection class (IP): | IP65 |
Features
Max. conductor cross-section rigid (single/multi-wire)
50 mm²
Max. conductor cross-section flexible (fine-stranded)
35 mm²
Lightning surge current (10/350 µs)
30 kA
Network form TT
Yes
Network type TN-S
Yes
Network form TN
No
Network type TN-C
No
Network type TN-C-S
No
Protection level L-N
1.5 kV
Network type DC
No
Integrated backup fuse
No
Network type IT
No
HAB
AKi-SBZ 352-40 lightning protection housing
Manufacturer
HAN
76735201
GTIN
4013902604876
Size
3 HP
Highest continuous voltage AC
255V
Mounting type
Pre-assembled in the housing
Nominal voltage AC
230V
Number of poles
5
IP protection)
IP65
Signaling on the device
Optical
