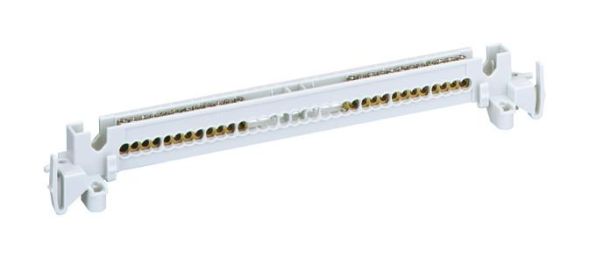

PE/N terminal rail, for installation in AK/AKi compact small distributors as additional terminals or as a replacement., PE and N terminal with 2 terminal points 16mm² and 10 terminal points 6mm²Dimensions: 242 x 26 x 13mm
| Property | Value |
| Number of poles: | 2 |
| Color: | gray |
| Rated voltage: | 450 V |
| Material of the insulating body: | Thermoplastic |
| Rated current In: | 76 A |
| Operating temperature: | 40 °C |
| Connectable conductor cross-section, single-wire: | 1.5 to 16 mm² |
| Connectable conductor cross-section, multi-wire: | 1.5 to 16 mm² |
| Mounting type: | other |
| Design of electrical connection 1: | screw connection |
| Design of electrical connection 2: | screw connection |
| Number of terminal points per pole: | 12 |
| Flammability class of the insulating material according to UL 94: | V2 |
| End plate required: | no |
| Explosion-tested version 'Ex e': | no |
| Transparent: | no |
Features
HAB
AK 12 PEN-S clamping rail
Manufacturer
HAN
79021101
GTIN
4013902852444
Connectable conductor cross-section solid
1.5 to 16 mm²
Connectable conductor cross-section stranded
1.5 to 16 mm²
Rated voltage
450V
Rated current In
76 A
Operating temperatur
40°C
Flammability class of the insulating material according to UL 94
V2
Color
Mounting type
Other
Number of poles
2
Transparent
No
