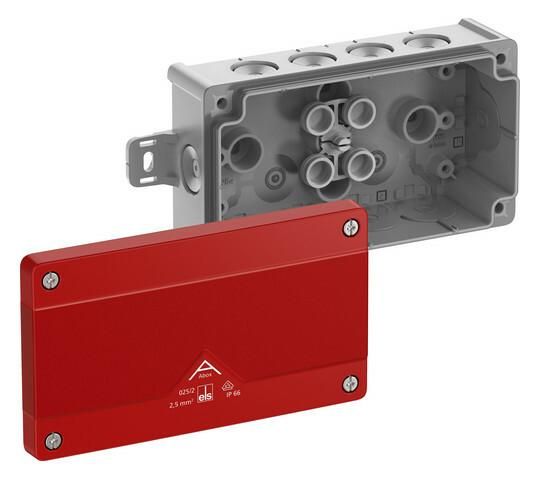

Junction box, with protection class IP66, nominal cross-section 2.5mm², certified by (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (ammonia resistance), self-sealing, soft entry membranes, M20, sealing range 4-16mm, (2 at the rear, 10 at the side), external fastening points, for standard installations indoors and protected outdoors, grey, Ui=1000 V AC, with red cover, without terminals, for marking circuits of the emergency lightingDimensions: 152 x 87 x 52mm
| Property | Value |
| Protection rating (IP): | IP66 |
| Length: | 87 mm |
| 152 mm | |
| Weight: | 167.1 |
| Weight unit: | KG |
| Mounting type: | Wall/ceiling mounting |
| Color: | red | Version: | Connection box |
| Halogen-free: | yes |
| Depth: | 52 mm |
| Shape: | rectangular |
| Surface: | untreated |
| Equipment: | without |
| Rated insulation voltage Ui: | 1000 V |
| Sealable: | yes |
| Functional integrity: | without |
| Operating temperature: | -25 - 55 °C |
| Material: | Plastic |
| Number of entries: | 12 |
| Cover fastening: | screwed |
| Max. Conductor cross-section: | 2.5 mm² |
| Weatherproof: | yes |
| Introduction from the rear: | yes |
| For Ex zone gas: | without |
| Type of housing feedthrough: | Sealing membrane |
| For Ex zone dust: | without |
| Cover design: | without |
| Protection class (NEMA): | other |
| Brief description: | Junction box, protection class IP66, max. conductor cross-section 2.5², impact resistance IK07, protection class II, Ui 690V AC, Ui 1000V DC, DLG, halogen-free |
Features
HAB
Abox 025/2 AB-L/SB IP66
Manufacturer
HAN
80270301
GTIN
4013902661749
Version
Junction box
Cover design
Without
Rated insulation voltage Ui
1000V
Width
152 mm
Operating temperature
-25 - 55 °C
Color
Shape
Rectangular
Functional preservation
Without
Weight
167,1
Weight unit
kg
Halogen free
Yes
Short description
Junction box, protection class IP66, max. conductor cross-section 2.5², impact resistance IK07, protection class II, Ui 690V AC, Ui 1000V DC, DLG, halogen-free
Length
87 mm
Mounting type
Wall/ceiling mounting
Surface
Untreated
IP protection)
IP66
Protection class (NEMA)
Other
Depth
52 mm
Material
Plastic
