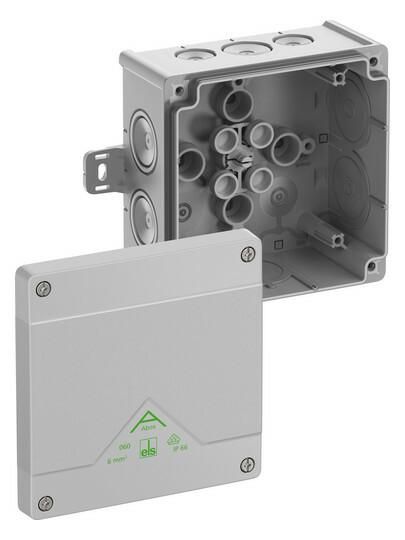

Junction box, with protection class IP66, nominal cross-section 6mm², certified by (DIN EN 60670-1/-22 (VDE 0606-1/-22)), DLG (ammonia resistance), self-sealing, soft entry membranes, M20/M25/M32, sealing range 4-28mm, (2 at the rear, 8 at the side), external fastening points, for standard installations indoors and protected outdoors, grey, Ui=1000 V AC, without terminalsDimensions: 127 x 127 x 70mm
| Property | Value | ||
| Protection rating (IP): | IP66 | ||
| Length: | 127 mm | ||
| 127 mm | |||
| Weight: | 132.93 | ||
| Weight unit: | KG | ||
| Mounting type: | Wall/ceiling mounting | ||
| Color: | gray | tr style='background-color:#F0F0F0'>Version: | Connection box |
| Halogen-free: | yes | ||
| Depth: | 70 mm | ||
| Shape: | square | ||
| Surface: | untreated | ||
| Equipment: | without | ||
| Rated insulation voltage Ui: | 1000 V | ||
| Sealable: | yes | ||
| Functional integrity: | without | ||
| Operating temperature: | -25 - 55 °C | ||
| Material: | Plastic | ||
| Number of entries: | 10 | ||
| Cover fastening: | screwed | ||
| Max. Conductor cross-section: | 6 mm² | ||
| Weatherproof: | yes | ||
| Introduction from the rear: | yes | ||
| For Ex zone gas: | without | ||
| Type of housing feedthrough: | Sealing membrane | ||
| For Ex zone dust: | without | ||
| Cover design: | without | ||
| Protection class (NEMA): | other | ||
| Brief description: | Junction box, Type of protection IP66, max. 6², Impact strength IK07, Protection class II, Ui 690V AC, Ui 1000V DC, DLG, Halogen free |
Features
HAB
Abox 060 AB-L IP66
Manufacturer
HAN
80640101
GTIN
4013902660872
Version
Junction box
Cover design
Without
Rated insulation voltage Ui
1000V
Width
127 mm
Operating temperature
-25 - 55 °C
Color
Shape
Square
Functional preservation
Without
Weight
132,93
Weight unit
kg
Halogen free
Yes
Short description
Junction box, Type of protection IP66, max. 6², Impact strength IK07, Protection class II, Ui 690V AC, Ui 1000V DC, DLG, Halogen free
Length
127 mm
Mounting type
Wall/ceiling mounting
Surface
Untreated
IP protection)
IP66
Protection class (NEMA)
Other
Depth
70 mm
Material
Plastic
