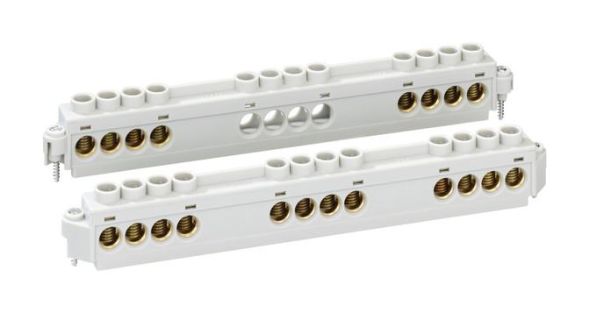

9395161 Abox 250/350 KLS-25/35 terminal block terminal block manufacturer article number: 9395161, manufacturer article name: Abox 250/350 KLS-25/35 terminal block
| Property | Value |
| Number of poles: | 5 |
| Color: | gray |
| Rated voltage: | 690 V |
| Material of the insulating body: | Thermoplastic |
| Rated current In: | 125 A |
| Operating temperature: | 85 °C |
| Connectable conductor cross-section, single-wire: | 10 to 35 mm² |
| Connectable conductor cross-section, multi-wire: | 10 to 35 mm² |
| Mounting type: | other |
| Design of electrical connection 1: | screw connection |
| Number of terminal points per pole: | 4 |
| Flammability class of the insulating material according to UL 94: | V2 |
| End plate required: | no |
| Explosion-tested version 'Ex e': | no |
| Transparent: | no |
Features
HAB
Abox 250/350 KLS-25/35 clamping block
Manufacturer
HAN
84003501
GTIN
4013902110278
Connectable conductor cross-section solid
10 to 35 mm²
Connectable conductor cross-section stranded
10 to 35 mm²
Rated voltage
690V
Rated current In
125A
Operating temperatur
85°C
Flammability class of the insulating material according to UL 94
V2
Color
Mounting type
Other
Number of poles
5
Transparent
No
