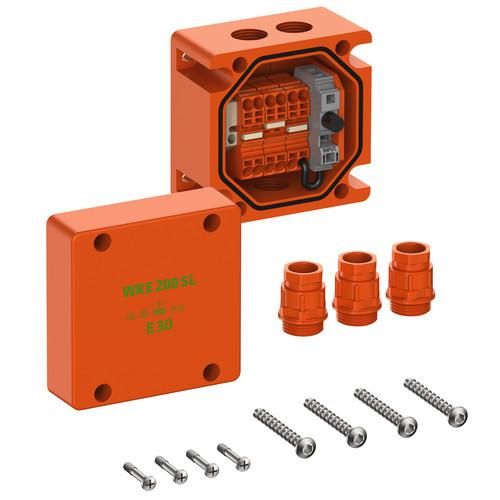

Cable junction box, with protection class IP66, Ui=450V AC, internal thread, M25, (3 on the side), external fastening points, with electrical functional integrity E30 according to DIN 4102 Part 12, tested according to (DIN EN 61439-1/-2 (VDE 0660-600-1/-2)), with screwless Wago TopJobS terminal blocks, housing made of halogen-free special duroplast, orange, junction box with fused branch, junction box 3-pole, junction box 3-pole, number of clampable conductors per pole 4 x 0.5- 4mm², 1 fuse holder (20 x 5mm) max. 10ADimensions: 115 x 115 x 93mmIncluded accessories: 3 cable glands M25, sealing range 6-15mm, dowel set ø 6mm
| Property | Value |
| Width: | 115 mm |
| Length: | 115 mm |
| Depth: | 93 mm |
| Color: | orange |
| Protection class (IP): | IP66 |
| Number of entries: | 3 |
| Halogen-free: | yes |
| Mounting type: | Wall/ceiling mounting |
| Material: | Plastic |
| Cover fastening: | screwed |
| Sealable: | no |
| Can be arranged in rows: | no |
| Shape: | square |
| Max. Conductor cross-section: | 4 mm² |
| Type of housing feedthrough: | Thread |
| For Ex-Zone Gas: | without |
| Functional integrity: | E 30 |
| Explosion-tested version: | no |
| Potting compound included: | no |
| Potable: | no |
| For Ex-Zone Dust: | without |
| Installation under water: | no |
| Transparent cover: | no |
| Installation in the ground: | no |
| Surface: | untreated |
| With shielding: | no |
| Rated insulation voltage Ui: | 450 V |
| Introduction from the rear: | no |
| Weatherproof: | yes |
| Cover design: | other |
| Operating temperature: | -25 to 40 °C |
Features
Explosion-tested version
No
HAB
WKE 204 SL
Manufacturer
HAN
86228401
GTIN
4013902668496
Cover design
Other
Rated insulation voltage Ui
450V
Width
115 mm
Operating temperature
-25 to 40 °C
Color
Shape
Square
Functional preservation
E30
Halogen free
Yes
Length
115 mm
Mounting type
Wall/ceiling mounting
Surface
Untreated
IP protection)
IP66
Depth
93 mm
Material
Plastic
