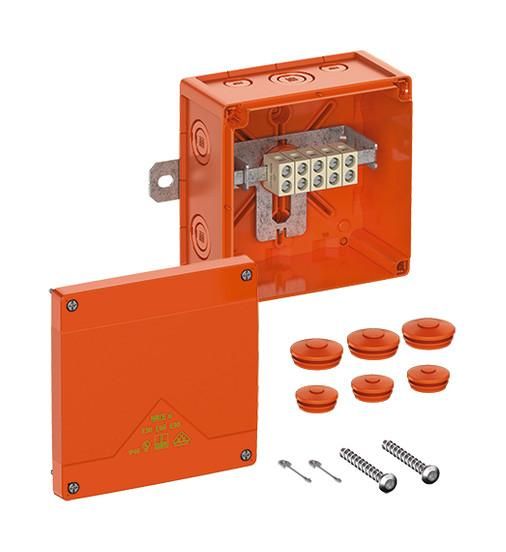

Cable junction and connection box with IP66 validated according to EN 60670 and IEC 62208 with electrical functional integrity E30 - E90 according to DIN 4102 Part 12. Halogen-free housing made of special thermoplastic, terminals made of high-temperature-resistant special ceramic, quick assembly using external fastening tabs, terminal holder can be freely positioned, protection class IP66, functional integrity E30-E90, nominal cross-section 4, protection class II, rated insulation voltage Ui 450V, test mark UL-EU, halogen-free, 150 x 150 x 85, junction box 5-pin 1 - 10 mm, junction box 5-pin 1 - 4 mm, number of clampable conductors per pole: 10 x 1 / 8 x 1.5 / 6 x 2.5 / 4 x 4 / 2 x 6 / 2 x 10, Included accessories: cover captive device, screw anchor, 3 double membrane connectors IP66 M25 sealing range 9 - 16 mm, 3 double membrane connectors IP66 M32 sealing range 14 - 21 mm
| Property | Value |
| Width: | 150 mm |
| Length: | 150 mm |
| Depth: | 85 mm |
| Color: | orange |
| Protection class (IP): | IP66 |
| Number of entries: | 12 |
| Halogen-free: | yes |
| Mounting type: | Wall/ceiling mounting |
| Material: | Plastic |
| Cover fastening: | screwed |
| Sealable: | yes |
| Can be arranged in rows: | yes |
| Shape: | square |
| Max. Conductor cross-section: | 10 mm² |
| Type of housing feedthrough: | Pre-punched |
| For Ex-Zone Gas: | without |
| Functional integrity: | E 90 |
| Explosion-tested version: | no |
| Potting compound supplied: | no |
| Potable: | no |
| For Ex-Zone Dust: | without |
| Installation under water: | no |
| Transparent cover: | no |
| Installation in the ground: | no |
| Surface: | untreated |
| With shielding: | no |
| Rated insulation voltage Ui: | 450 V |
| Introduction from the rear: | yes |
| Weatherproof: | yes |
| Cover design: | other |
| Operating temperature: | -35 to 55 °C |
| Protection class (NEMA): | other |
