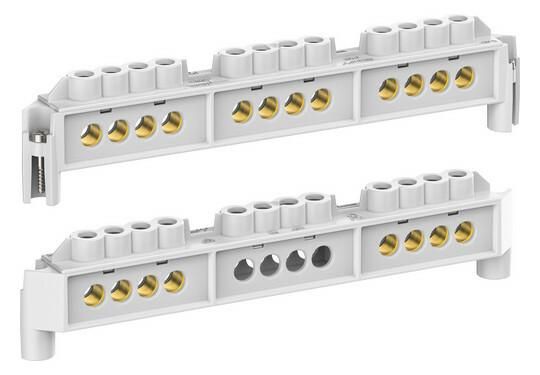

Connection terminal according to DIN EN 60998 (VDE 0613), Ui=690V. For installation in junction boxes Abox / Abox Pro from 2024., high-level screw terminal for Abox / Abox Pro 250/350, 5-pole-35mm², In = 125 A, clampable cross-sections per pole: 12 x 10mm², 8 x 16mm², 4 x 25mm², 4 x 35mm² Cu rigid / flexible with wire end ferruleDimensions:21 x 205 x 48mm
| Property | Value |
| Width: | 205 mm |
| Polzahl: | 5 |
| Gewicht: | 659,58 |
| Gewichtseinheit: | KG |
| Montageart: | Direktmontage |
| Color: | gray |
| Halogen-free: | yes |
| Height: | 48 mm |
| Depth: | 21 mm |
| Rated voltage: | 690 V |
| Operating temperature: | 85 °C |
| Number of terminal points per pole: | 4 |
| Flammability class of the insulating material according to UL 94: | V2 |
| Design of electrical connection 1: | Screw connection |
| Connectable conductor cross-section, single-wire: | 10 - 35 mm² |
| Connectable conductor cross-section, fine-wire with wire end ferrule: | 10 - 35 mm² |
| Material of the insulating body: | Thermoplastic |
| Rated current In: | 125 A |
| Short description: | Terminal block |
Features
HAB
Abox 250/350 KLS-25?/35? according to DIN EN 609
Manufacturer
HAN
89643501
GTIN
4013902677368
Connectable conductor cross-section solid
10 - 35 mm²
Rated voltage
690V
Rated current In
125A
Operating temperatur
85°C
Width
205 mm
Flammability class of the insulating material according to UL 94
V2
Color
Weight
659,58
Weight unit
kg
Halogen free
Yes
Height
48 mm
Short description
Terminal block
Mounting type
Direct mounting
Number of poles
5
Depth
21 mm
