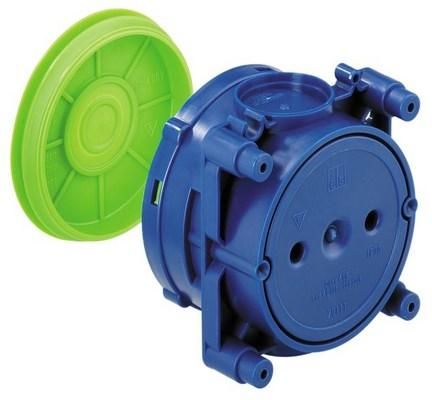

Spelsberg 97174501 U 71 K GRD device box

Description

Features

Reviews

Device box, 2 screw domes with screw spacing 60mm, can be combined at a standard spacing of 71mm, fully insulated cable transition, suitable for all types of formwork and counter formwork, with protection class IP30, rated insulation voltage: 400V AC, certified according to (DIN EN 60670-1/-22 (VDE 0606-1/-22)), halogen-free, 2-part, adhesive fastening or nail fastening, membrane for perforation, sealing range M16-M25, can be used with support beamsDimensions: 71 x 71 x 50mm

Property	Value
With screws:	no
Depth:	50 mm
Length:	71 mm
Width:	71 mm
Material:	Plastic
Color:	other
Sealable:	no
Halogen-free:	yes
Protection class (IP):	IP30
Shape:	round
Diameter:	60 mm
Mounting type:	Concrete construction
Number of entries:	2
Design:	Single
Design:	Device box
With nail tabs:	no
Windproof:	yes
Suitable for cable diameters:	1 to 25 mm
Entry from the rear:	yes
Can be coupled:	yes
Housing feedthrough through sealing membrane:	no
Cover fastening:	snaps on
Functional integrity:	without
For number of device inserts:	1
Surface:	untreated
Fastening of the devices:	screws or spreads
For pipe diameter:	25 mm
Tube locking:	yes
Clamp fixed in position:	no
Equipment:	without
Light hook fastening:	no
Socket:	without
With shielding:	no
Housing feed-through through knockout opening:	no
With rotating ring:	no
Special application:	without
Housing feedthrough through pipe socket:	no
Housing feedthrough through stepped membrane:	no
Pipe locking optional:	no
Cover design:	Blind cover
Transparent cover:	no
