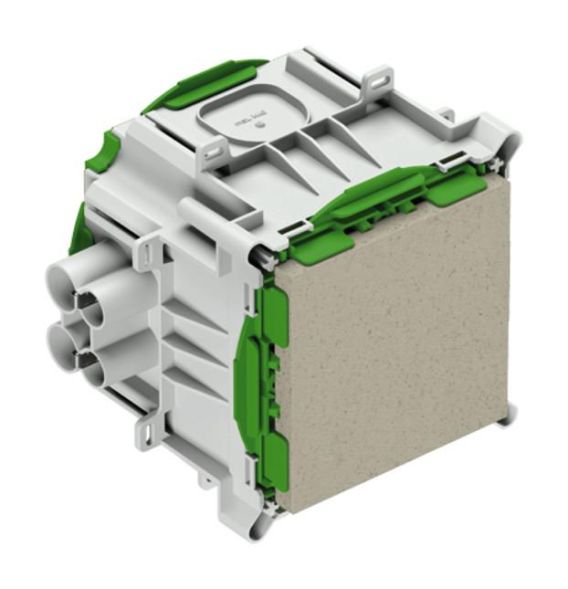

Installation housing, for prefabricated construction, halogen-free, for the installation of low-voltage/high-voltage/LED lights and loudspeakers, alarm and call systems, for the installation of tested lights in accordance with DIN EN 60598 (VDE 0711), as well as with F marking or MM marking, with protection class IP30, rated insulation voltage: 400V AC, halogen-free, maximum installation height for lights, loudspeakers, alarm and call systems: 100mm, LED lamp power max. 15 W, halogen lamp power max. 25 W, outlet opening: Fermacell(R) plate, variable up to max. 100 x 100mm, 8 combination pipe entries 4 x 16mm, 4 x 19mm integrated pipe stopper and strain relief for pipes 16mm, 19mm, adhesive fastening or nail fastening, combination pipe entries and membrane for punching, sealing area M16-M40Dimensions: 177 x 200 x 135mm
| Property | Value |
| With operating device compartment: | no |
| Material: | Plastic |
| Application: | for slab ceilings |
| Installation depth: | 135 mm |
| Suitable for HV luminaires: | yes |
| Suitable for NV luminaires: | yes |
| Max. Lamp diameter: | 80 mm |
| Min. ceiling thickness: | 160 mm |
| Suitable for LED lights: | yes |
| Suitable for lamp power: | 0 to 15 W |
| Installation width: | 200 mm |
| Installation length: | 177 mm |
