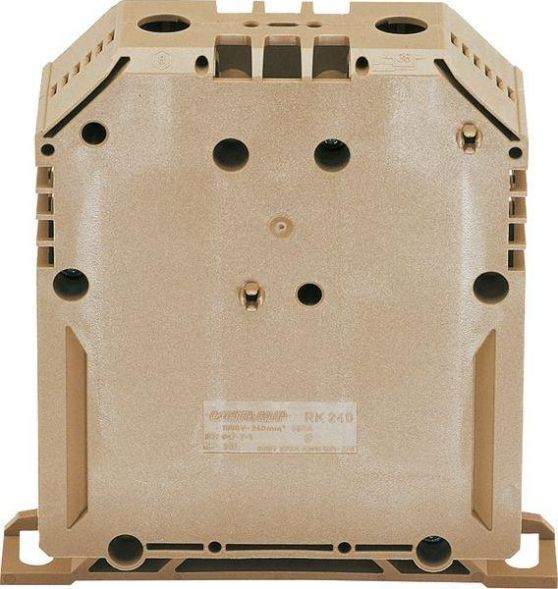

Connection terminal, 1-pole, can be connected in series, for single and multi-strand conductors and for laminated flat copper, conversion kit to 5 poles 1-poleDimensions: 31 x 109 x 99mm
| Property | Value |
| Color: | beige |
| Connectable conductor cross-section, fine-stranded without wire end ferrule: | 50 to 150 mm² |
| Connectable conductor cross-section, multi-stranded: | 35 to 150 mm² |
| Rated voltage: | 1000 V |
| Number of levels: | 1 |
| Number of terminal points per level: | 2 |
| Rated current In: | 309 A |
| Operating temperature: | -40 to 105 °C |
| Connectable conductor cross-section, single-wire: | 35 to 150 mm² |
| Connectable conductor cross-section, fine-stranded with wire end ferrule: | 50 to 150 mm² |
| Design of electrical connection 1: | Screw connection |
| Design of electrical connection 2: | Screw connection |
| Mounting type: | DIN rail TH35 |
| Flammability class of the insulating material according to UL 94: | V2 |
| End plate required: | yes |
| Levels bridged internally: | no |
| Material of the insulating body: | Thermoplastic |
| Explosion-tested version 'Ex e': | no |
Features
HAB
URS RK 1-150qmm
Manufacturer
HAN
67065001
GTIN
4013902859313
Connectable conductor cross-section solid
35 to 150 mm²
Connectable conductor cross-section stranded
35 to 150 mm²
Rated voltage
1000V
Rated current In
309 A
Operating temperatur
-40 to 105 °C
Flammability class of the insulating material according to UL 94
V2
Color
Mounting type
DIN rail TH35
