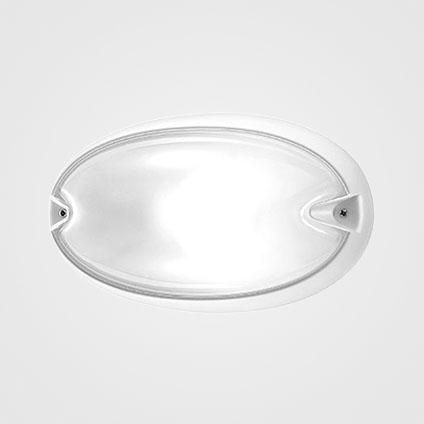

Lights for wall, plinth, ceiling and bollard mounting, for indoor and outdoor use, comprising: housing, ring or cover made of technopolymer, diffuser made of pressed glass, frosted inside, protection class II, parabolic reflector made of aluminum for incandescent lamp versions, silicone gasket, supply also possible via a side cable entry (20 mm), external screws made of stainless steel (theft-proof screws available on request)
| Property | Value |
| Suitable for wall mounting: | No |
| Suitable for pendant suspension: | No |
| Suitable for ceiling mounting: | No |
| Suitable for recessed mounting: | No |
| Suitable for surface mounting: | Yes |
| Light source: | other |
| With light source: | No |
| Socket: | E27 |
| Suitable for number of light sources: | 1 |
| Lamp wattage: | 21 W |
| Lamp wattage for Multiwatt: | not applicable |
| Operating device: | not required |
| With operating device: | No |
| Type of dimming: | not dimmable |
| Circuit: | other |
| Suitable for emergency lighting: | No |
| Emergency lighting component integrated: | No |
| Housing material: | Plastic |
| Surface finish: | matt |
| Housing color: | white |
| Suitable for light strip configuration: | No |
| Cover material: | Opal glass |
| Suitable for computer workstations: | No |
| Grid design: | without |
| Reflector: | other |
| Light distribution: | symmetrical |
| Beam angle: | free-beaming |
| Light emission: | direct |
| Length: | 260 mm |
| Width: | 157 mm |
| Height/Depth: | 121 mm |
| With motion detector: | No |
| With light sensor: | No |
| Protection class: | II |
| Protection type (IP): | IP55 |
| Impact resistance: | IK06 |
| Fire protection 'D': | No |
| Installation in insulated ceilings, fire protection 'F with roof': | No |
| Glow wire test according to IEC 60695-2-10: | 750 °C - 5 s |
| With air slots: | No |
| Voltage type: | AC |
| Light color: | other |
Features
HAB
5700
Manufacturer
HAN
005700
GTIN
8018367057003
Surface finish
Frosted
Execution of the grid
Without
Beam angle
Free-radiating
Operating device
Not required
Width
157 mm
Version
E27
Suitable for surface mounting
Yes
Suitable for ceiling mounting
No
Suitable for flush mounting
No
Suitable for number of lamps
1
Suitable for light strip configuration
No
Suitable for emergency lighting
No
Suitable for pendulum suspension
No
Suitable for wall mounting
No
Housing color
White
Height/Depth
121 mm
Lamp power
21 W
Lamps
Other
Light emission
Direct
Light color
Other
Light distribution
Symmetrical
Length
260 mm
With operating device
No
With motion detector
No
With light source
No
With light sensor
No
With air slots
No
Reflector
Other
Impact resistance
IK06
Protection class
II
Voltage type
AC
Cover material
Glass opal
Housing material
Plastic
