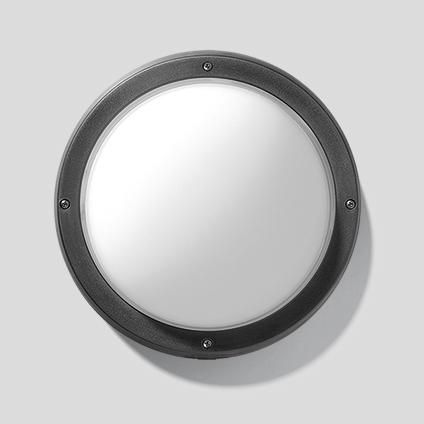

Indoor and outdoor wall and ceiling lights, comprising: housing, decorative ring and covers in painted die-cast aluminum, diffuser in pressed glass, frosted inside, EPDM gasket, decorative ring and covers are connected to the diffuser, light fixture is not suitable for through-wiring, external screws in stainless steel, system with tiltable LED board to facilitate cable connection during installation, the SMD LED versions are supplied with mid-power card
| Feature | Value |
| Suitable for wall mounting: | No |
| Suitable for pendant suspension: | No |
| Suitable for ceiling mounting: | No |
| Suitable for recessed installation: | No |
| Suitable for surface mounting: | Yes |
| Light source: | LED not replaceable |
| With light source: | Yes |
| Socket: | other |
| Suitable for number of light sources: | 1 |
| Lamp wattage: | 16 W |
| Lamp wattage for multiwatt: | not applicable |
| Operating device: | LED operating device, current-controlled |
| With operating device: | Yes |
| Type of dimming: | not dimmable |
| Circuit: | other |
| Suitable for emergency lighting: | No |
| Emergency lighting component integrated: | No |
| Nominal voltage: | 220 - 240 V |
| Color temperature: | 4000 - 4000 K |
| Housing material: | Aluminium |
| Surface finish: | matt |
| Housing colour: | anthracite |
| Suitable for strip light configuration: | No |
| Cover material: | Opal glass |
| Suitable for computer workstations: | No |
| Grid finish: | without |
| Reflector: | other |
| Light distribution: | symmetrical |
| Beam angle: | free-beaming |
| Light emission: | direct |
| Height/depth: | 119 mm |
| Outer diameter: | 293 mm |
| With motion detector: | No |
| With light sensor: | No |
| Protection class: | I |
| Protection class (IP): | IP66 |
| Impact resistance: | IK07 |
| Fire protection 'D': | No |
| Installation in insulated ceilings, fire protection 'F with roof': | No |
| Glow wire test according to IEC 60695-2-10: | without |
| With air slots: | No |
| Voltage type: | AC |
| Effective luminous flux: | 1245 lm |
| Light color: | white |
Features
HAB
302631
Manufacturer
HAN
302631
GTIN
8018367614183
Surface finish
Frosted
Execution of the grid
Without
Beam angle
Free-radiating
Outer diameter
293 mm
Operating device
LED control gear current controlled
Color temperature
4000 - 4000K
Version
Other
Suitable for surface mounting
Yes
Suitable for ceiling mounting
No
Suitable for flush mounting
No
Suitable for number of lamps
1
Suitable for light strip configuration
No
Suitable for emergency lighting
No
Suitable for pendulum suspension
No
Suitable for wall mounting
No
Housing color
Anthracite
Height/Depth
119 mm
Lamp power
16W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Light distribution
Symmetrical
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
With air slots
No
Nominal voltage
220 - 240V
Reflector
Other
Impact resistance
IK07
Protection class
I
Voltage type
AC
Cover material
Glass opal
Housing material
Aluminum
