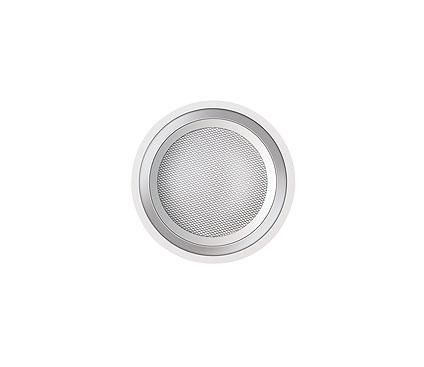

Recessed downlight DL 105 with high-performance LED in COB technology, luminaire output 15W, round, filigree mini downlight for universal lighting tasks, logical continuation of the classic product in innovative LED technology, the downlight integrates discreetly into almost any ceiling image and has a particularly architecturally supporting effect, is a universal design tool thanks to its clear design, designed for a wide range of application and planning variations, luminaire housing made of galvanized sheet steel, mounting ring made of die-cast aluminum, ceiling fastening via spring technology for ceiling thicknesses from 1 to 25mm, scratch-resistant surface finish thanks to high-quality powder coating after reflector made of vacuum-vaporized, high-gloss pure aluminum (Al 99.98%), with recessed microprism disc, direct beam, homogeneous luminance distribution over the entire light emission surface, directed light creates an atmospheric room atmosphere, high-performance LED with passive cooling /
Further information:
| Property | Value |
| Mounting type: | Installation |
| Light source: | LED |
| Suitable for number of light sources: | 1 |
| Lamp wattage: | 13 W |
| Operating device: | EVG standard |
| Operating device included: | Yes |
| Ignitor: | not required |
| Ignitor included: | No |
| Circuit: | other |
| Dimmable: | No |
| Emergency lighting: | not suitable |
| Nominal voltage: | 220 - 240 V |
| Color temperature controllable: | No |
| Color controllable (RGB): | No |
| Direct/indirect components separately controllable: | No |
| Suitable for through-wiring: | Yes |
| Electrical connection with plug-in system: | No |
| Housing material: | steel |
| Surface finish: | other |
| Housing color: | white |
| Cover material: | plastic structured/prismatic |
| Suitable for computer workstations: | No |
| Reflector: | high-gloss |
| Reflector perforated: | No |
| Light distribution: | symmetrical |
| Light emission: | direct |
| Glare limitation UGR lengthwise: | 23.2 |
| Glare limitation UGR crosswise: | 23.2 |
| Suitable for accommodating lighting accessories: | No |
| Outer diameter: | 108 mm |
| Installation depth: | 100 mm |
| Installation diameter: | 98 mm |
| Protection class: | I |
| Protection class (IP): | IP44 |
| Impact resistance: | IK08 |
| Ball-proof: | No |
| Fire protection F: | Yes |
| Fire protection FF: | No |
| Fire protection D: | No |
| Installation in insulated ceilings, fire protection F with roof: | No |
| Furniture installation, fire protection M: | No |
| Furniture installation, fire protection MM: | No |
| Extreme temperature: | 10 - 35 °C |
| Glow wire test according to IEC 695-2-1: | 960 °C - 5 sec. |
| With light source: | Yes |
