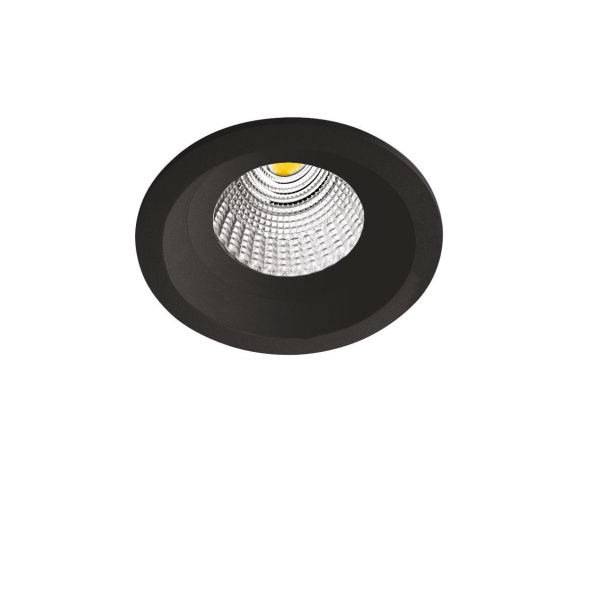

Recessed spotlight NV 414 with high-performance LED, luminaire output 27W, spotlight head and mounting ring made of die-cast aluminum, scratch-resistant surface finish thanks to high-quality powder coating after high-gloss spherical facet reflector made of pure aluminum for maximum luminaire efficiency and neutral color rendering, radiation characteristics extra-wide beam (wideflood), high-performance LED with passive cooling,
| Property | Value |
| Suitable for wall mounting: | No |
| Suitable for pendant suspension: | No |
| Suitable for ceiling mounting: | Yes |
| Suitable for Built-in installation: | Yes |
| Suitable for surface mounting: | No |
| Adjustability: | not adjustable |
| Light source: | LED not replaceable |
| With light source: | Yes |
| Socket: | other |
| Suitable for number of light sources: | 1 |
| Suitable for lamp power: | 25 - 25 W |
| Lamp power at Multiwatt: | not applicable |
| Operating device: | LED operating device, current-controlled |
| With operating device: | Yes |
| Type of dimming: | not dimmable |
| Emergency lighting component integrated: | No |
| With light sensor: | No |
| With motion detector: | No |
| Nominal voltage: | 220 - 240 V |
| Nominal current: | 113 - 123 mA |
| System power: | 27 W |
| Color temperature: | 4000 - 4000 K |
| Housing material: | Aluminum |
| Surface finish: | matt |
| Housing color: | black |
| Cover material: | transparent glass |
| Suitable for computer workstations: | No |
| Design of the grid: | without |
| Reflector: | high-gloss |
| Light distribution: | symmetrical |
| Light emission: | direct |
| Beam angle: | wide beam 40-80° |
| Outer diameter: | 138 mm |
| Installation depth: | 105 mm |
| Installation diameter: | 125 mm |
| Protection class: | II |
| Protection type (IP): | IP20 |
| Impact resistance: | IK02 |
| Fire protection 'D': | No |
| Installation in insulated ceilings, fire protection 'F with roof': | No |
| Ambient temperature: | 10 - 35 °C |
| Glow wire test according to IEC 60695-2-10: | 650 °C - 30 s |
| Voltage type: | AC |
| Effective luminous flux: | 2920 lm |
| Light color: | white |
| Color rendering index CRI: | 80-89 |
Features
HAB
8,41417E+12
Manufacturer
HAN
8414171253480
GTIN
4052075171075
Surface finish
Frosted
Execution of the grid
Without
Beam angle
Wide beam 40-80°
Outer diameter
138 mm
Operating device
LED control gear current controlled
Installation diameter
125 mm
Installation depth
105 mm
Color temperature
4000 - 4000K
Color rendering index CRI
80-89
Version
Other
Suitable for surface mounting
No
Suitable for ceiling mounting
Yes
Suitable for flush mounting
Yes
Suitable for lamp power
25 - 25W
Suitable for number of lamps
1
Suitable for pendulum suspension
No
Suitable for wall mounting
No
Housing color
Black
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Light distribution
Symmetrical
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
Nominal voltage
220 - 240V
Rated current
113 - 123mA
Reflector
High gloss
Impact resistance
IK02
Protection class
II
Voltage type
AC
System performance
27W
Ambient temperature
10 - 35 °C
Adjustability
Not adjustable
Cover material
Glass transparent
Housing material
Aluminum
