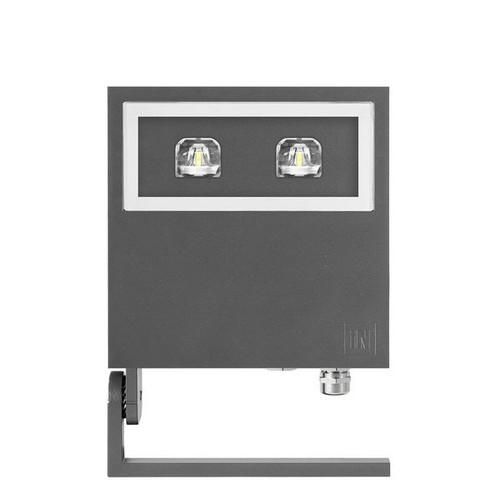

LED floodlight for indoor and outdoor use, comprising: Body and cover in painted die-cast aluminum. Adjustable boom in painted die-cast aluminum. Diffuser in extra-clear tempered flat glass with internal screen printing. Asymmetrical optics. Silicone gasket. External screws in stainless steel. Gland M16x1.5 for cable D= 5-10 mm. Latest generation high-performance LED lights with high luminous flux. Ground spike made of technopolymer for ground fixing available.
| Feature | Value |
| System power: | 18 W |
| Rated luminous flux: | 1170 lm |
| Housing color: | anthracite |
| Housing material: | aluminum |
| Protection class (IP): | IP66 |
| Socket: | other |
| Light source: | LED not replaceable |
| Protection class: | I |
| With light source: | yes |
| With operating device: | yes |
| Suitable for built-in installation: | no |
| Length: | 223 mm |
| Width: | 160 mm |
| Height/depth: | 43 mm |
| With motion detector: | no |
| Suitable for wall mounting: | yes |
| Color temperature: | 3000 K |
| Nominal voltage: | 220 to 240 V |
| Color rendering index CRI: | 70-79 |
| Suitable for ceiling mounting: | yes |
| Light distribution: | asymmetrical |
| Suitable for lamp power: | 18 W |
| Beam angle: | medium beam 21-40° |
| Impact resistance: | IK06 |
| Luminaire with limited surface temperature D-mark according to EN 60598-2-24: | no |
| Reflector: | without |
| Suitable for number of light sources: | 1 |
| Cover material: | transparent glass |
| Light color: | white |
| Suitable for track mounting: | no |
| Adjustability: | rotatable |
| Suitable for clamp mounting: | no |
| Suitable for pendulum suspension: | no |
| Suitable for platform/floor mounting: | yes |
| Suitable for truss mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | yes |
| Suitable for cable system: | no |
| Surface protection: | powder-coated |
| Brushed surface: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | yes |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (integrated in device): | no |
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | no |
| Dimming mains voltage modulation: | no |
| Dimming trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | no |
| Light distributor: | Diffuser lens/optics/panel |
| Light emission: | direct |
| Rated ambient temperature according to IEC 62722-2-1: | -25 to 35 °C |
| Replaceable operating device: | yes |
| DALI-2 dimming: | no |
| Luminous flux maintenance with an average service life of 35,000 hours at an ambient temperature of 25 °C: | 92.7 % |
| Luminous flux maintenance with an average service life of 50,000 hours at an ambient temperature of 25 °C: | 89.1 % |
| Luminous flux maintenance with an average service life of 50,000 hours at an ambient temperature of 25 °C: Service life 100,000 h at 25 °C ambient temp.: | 78.2 % |
| Constant luminous flux control: | no |
| Color temperature adjustable: | no |
| Luminous flux adjustable: | continuously |
| Beam angle adjustable: | no |
| Max. number of lights with circuit breaker B16: | 50 |
| Max. Number of lights circuit breaker C16: | 85 |
| Emergency power supply integrated: | no |
| IFTTT support available: | no |
| Compatible with Apple HomeKit: | no |
| Compatible with Google Assistant: | no |
| Compatible with Amazon Alexa: | no |
Features
Rated luminous flux
1170 lm
HAB
FOCUS+1 18W A10/M 3000K AN3 DALI
Manufacturer
HAN
305109
GTIN
8018367650297
Beam angle
Medium beam 21-40°
Beam angle adjustable
No
Replaceable operating device
Yes
Rated ambient temperature according to IEC 62722-2-1
-25 to 35 °C
Width
160 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
Yes
Dimming DALI-2
No
Dimming DMX
No
Dimming DSI
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Color temperature
3000K
Color temperature adjustable
No
Color rendering index CRI
70-79
Version
Other
Suitable for number of light sources
1
Suitable for surface mounting
Yes
Suitable for ceiling mounting
Yes
Suitable for flush mounting
No
Suitable for clamp mounting
No
Suitable for lamp power
18W
Suitable for pendulum suspension
No
Suitable for podium/floor mounting
Yes
Suitable for rope system
No
Suitable for busbar mounting
No
Suitable for truss mounting
No
Suitable for wall mounting
Yes
Housing color
Anthracite
Height/Depth
43 mm
IFTTT support available
No
Compatible with Amazon Alexa
No
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Constant luminous flux control
No
Luminaire with limited surface temperature D-mark according to EN 60598-2-24
No
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Luminous flux adjustable
Continuously variable
Lumen maintenance at average service life of 50,000 hours at 25 °C ambient temperature.
89.1 %
Light distributor
Diffuser lens/optics/panel
Light distribution
Asymmetrical
Length
223 mm
Max. number of luminaires Circuit breaker B16
50
Max. number of luminaires Circuit breaker C16
85
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
Nominal voltage
220 to 240 V
Emergency power supply integrated
No
Brushed surface
No
Surface protection
Powder coated
Without dimming function
No
Reflector
Without
Impact resistance
IK06
IP protection)
IP66
Protection class
I
System performance
18W
Adjustability
Rotatable
Cover material
Glass transparent
Housing material
Aluminum
