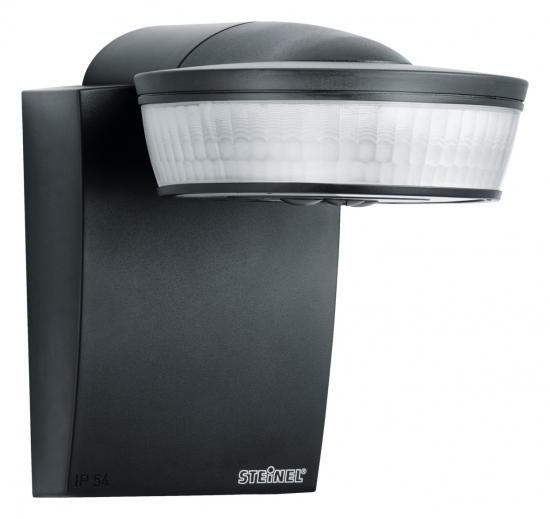

King of infrared motion detectors. The revolutionary sensIQ for indoor and outdoor use, ideal for house entrances, loading ramps, up to 5 m installation height, 4-way sensor system for optimal monitoring in a 300° detection angle, 20 m range (tangential), meter-accurate range adjustment in 3 independent directions, powerful relay for high switching capacity. Remote control and corner wall bracket included.
| Property | Value |
| Width: | 113 mm |
| Height: | 144 mm |
| Voltage type: | AC |
| Protection class (IP): | IP54 |
| Min. duty cycle: | 5 s |
| Max. duty cycle: | 15 min |
| Max. Inrush current: | 110 A |
| Max. range to one side: | 20 m |
| Max. Frontal range: | 20 m |
| Horizontal detection angle: | 300 ° |
| Color: | black |
| RAL number (similar): | 9005 |
| Material: | Plastic |
| Mounting height: | 2 m |
| Mounting type: | Surface-mounted |
| Response brightness: | 2 to 2000 lx |
| Response brightness adjustable: | yes |
| Creep protection: | yes |
| Temperature: | -20 to 50 °C |
| Response sensitivity adjustable: | no |
| Sensor type: | passive infrared |
| Surface protection: | other |
| Material quality: | Thermoplastic |
| Diameter of detection field on floor: | 8 m |
| Number of Switching zones: | 1360 |
| Halogen-free: | yes |
| Constant light control: | no |
| HVAC control: | no |
| Forced shutdown: | yes |
| Animal corridor: | no |
| Networkable: | yes |
| Automatic stair light: | yes |
| Bypass switch: | yes |
| Suitable for wireless transmission: | no |
| Remote controllable: | yes |
| With signal unit: | yes |
| Alarm function: | no |
| Teach function for response brightness: | yes |
| Dimming function with dimming insert: | no |
| Transparent: | no |
| With remote control: | yes |
| Suitable for C load: | yes |
| With DALI interface: | no |
| Extension input: | yes |
| Forced switching on: | yes |
| Suitable for ceiling mounting: | no |
| Connection type: | other |
| Antibacterial treatment: | no |
Features
Bridging switch
Yes
With signal unit
Yes
Number of switching zones
1360
Response brightness
2 to 2000 lx
Forced shutdown
Yes
Max. inrush current
110 A
Forced switching on
Yes
Manufacturer
HAN
029579
GTIN
4007841029579
Dimming function with dimming insert
No
Alarm function
No
Connection type
Other
Response sensitivity adjustable
No
Response brightness adjustable
Yes
Antibacterial treatment
No
Width
113 mm
Detection angle horizontal
300°
Color
Remote controllable
Yes
Suitable for C-load
Yes
Suitable for ceiling mounting
No
Suitable for wireless transmission
No
HVAC control
No
Halogen free
Yes
Height
144 mm
Constant light control
No
Max. duty cycle
15 minutes
Max. range frontal
20m
Max. range to one side
20m
Min. duty cycle
5s
With DALI interface
No
With remote
Yes
Mounting type
Surface-mounted
Extension input
Yes
Surface protection
Other
RAL number (similar)
9005
IP protection)
IP54
Sensor type
Passive infrared
Voltage type
AC
Teach function for response brightness
Yes
Temperature
-20 to 50 °C
Animal corridor
No
Transparent
No
Networkable
Yes
Material
Plastic
Material quality
Thermoplastic
