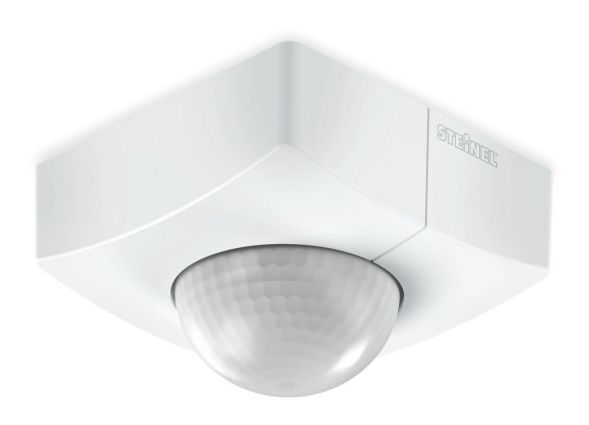

No fear of heights. Long range. Reliable. Motion detector IS 3360 MX Highbay ideal for high ceilings in industrial halls or commercial properties. For installation heights of up to 14 m. High-precision 360° infrared sensor. Maximum range: 18 m. For monitoring up to 1000 sqm. Available as a square surface-mounted and flush-mounted version. DALI-2 Input Device allows sensors to transmit the collected sensor data to higher-level lighting management systems.
| Property | Value |
| Optimal mounting height: | 12 m |
| Color: | white |
| Mounting type: | Surface-mounted |
| KNX bus system: | yes |
| Max. range to one side: | 18 m |
| Max. Frontal range: | 18 m |
| Horizontal detection angle: | 360 ° |
| Vertical detection angle: | 180 ° |
| Diameter of detection field on floor: | 14 m |
| Adjustable response brightness: | yes |
| Teach function for response brightness: | no |
| Self-learning switch-off delay: | yes |
| Bus system radio bus: | no |
| Bus system LON: | no |
| Bus system Powernet: | no |
| Other bus systems: | other |
| Material: | plastic |
| Material quality: | thermoplastic |
| Surface protection: | other |
| RAL number (similar): | 9003 |
| Extension input: | no |
| Crawl-under protection: | yes |
| Animal corridor: | no |
| Automatic stair lighting: | no |
| Transparent: | no |
| Bus system KNX-RF (radio): | no |
| Bidirectional radio: | no |
| Operating mode switch: | yes |
Features
Operating mode switch
Yes
Self-learning switch-off delay
Yes
HAB
Professional IS 3360 MX-E DALI2 AP WS
Manufacturer
HAN
057374
GTIN
4007841057374
Other bus systems
Other
Response brightness adjustable
Yes
Bus system radio bus
No
KNX bus system
Yes
LON bus system
No
Powernet bus system
No
Detection angle horizontal
360°
Color
Radio bidirectional
No
Max. range frontal
18m
Max. range to one side
18m
Mounting type
Surface-mounted
Extension input
No
Surface protection
Other
Optimal mounting height
12m
RAL number (similar)
9003
Teach function for response brightness
No
Animal corridor
No
Transparent
No
Material
Plastic
Material quality
Thermoplastic
