Description

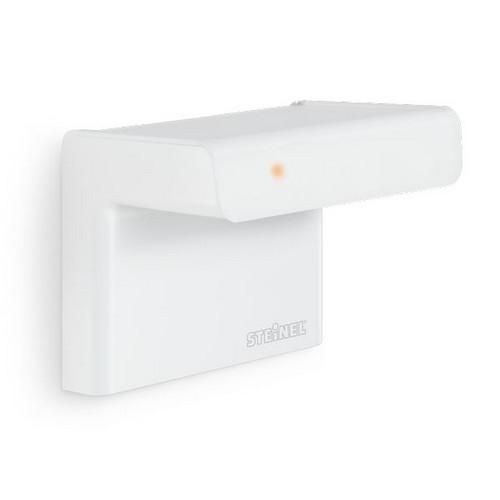

IHF 3D KNX V3 WS motion detector
| Property | Value |
| Number of channels: | 2 |
| Optimal mounting height: | 1.8 m |
| Color: | white |
| Mounting type: | Surface-mounted |
| KNX bus system: | yes |
| Max. range to one side: | 5 m |
| Max. Frontal range: | 5 m |
| Horizontal detection angle: | 160 ° |
| Min. duty cycle: | 10 s |
| Max. Duty cycle: | 1092 min |
| Vertical detection angle: | 100 ° |
| Diameter of detection field on floor: | 10 m |
| Adjustable response brightness: | yes |
| Teach function for response brightness: | yes |
| Self-learning switch-off delay: | yes |
| Bus system radio bus: | no |
| Bus system LON: | no |
| Bus system Powernet: | no |
| Other bus systems: | without |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Surface protection: | other |
| RAL number (similar): | 9010 |
| With bus connection: | yes |
| Extension input: | yes |
| Creep-under protection: | yes |
| Animal corridor: | yes |
| Automatic stair lighting: | no |
| Transparent: | no |
| Bus system KNX-RF (radio): | no |
| Bidirectional radio: | no |
| Operating mode switch: | no |
Features
Number of channels
2
Operating mode switch
No
Self-learning switch-off delay
Yes
HAB
IHF 3D KNX V3 WS
Manufacturer
HAN
059644
GTIN
4007841059644
Other bus systems
Without
Response brightness adjustable
Yes
Bus system radio bus
No
KNX bus system
Yes
LON bus system
No
Powernet bus system
No
Detection angle horizontal
160°
Color
Radio bidirectional
No
Max. duty cycle
1092 min
Max. range frontal
5 m
Max. range to one side
5 m
Min. duty cycle
10s
With bus connection
Yes
Mounting type
Surface-mounted
Extension input
Yes
Surface protection
Other
Optimal mounting height
1.8m
RAL number (similar)
9010
Teach function for response brightness
Yes
Animal corridor
Yes
Transparent
No
Material
Plastic
Material quality
Thermoplastic
