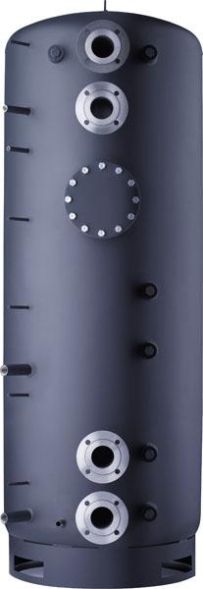

Width: 790mm, Weight: 219kg, Height: 2300mm, Max. operating pressure: 3bar, Max. additional electrical heating: 48kW, With thermal insulation: no, Depth: 930mm, Water content: 1000l, Buffer storage for hydraulic decoupling of the volume flows of heat pumps and heating circuit SBP 1000/1500 E SOL with additional smooth tube heat exchanger for integrating solar systems into the heating system. The storage tank serves as a system separation storage to extend the heat pump running time and to partially bridge tariff shutdown times. Optional addition by equipping the flange opening and 6 screw-in sockets. The thermal insulation WD 1000/1500 SBP as a special accessory ensures minimal heat loss. Flange connections DN 80 for heat pump and heating circuit, with solar heat exchanger, use in conjunction with large heat pumps, e.g. from WPF 40, flange opening 280 mm with blind flange for optional use WTW, WTFS and FCR electric heating flange, can be combined with up to two heat generators and two electric screw-in heaters (BGC)
| Property | Value |
| Height: | 2340 mm |
| Suitable for central heating: | yes |
| Suitable for heat pump: | yes |
| Mounting type: | Freestanding model |
| Barrel material: | steel |
| Surface protection inside: | untreated |
| With insulation: | no |
| Contents: | 979 l |
| Diameter: | 790 mm |
| Diameter without insulation: | 750 mm |
| Max. working pressure: | 3 bar |
| Max. Temperature: | 95 °C |
| Connection 1: | Flange |
| Connection dimension 1: | DN 80 |
| Connection 2: | Flange |
| Connection dimension 2: | DN 80 |
| With electric heating element: | no |
| Connection electrical element: | other |
| With temperature sensor connection: | yes |
| Number of temperature sensor connections: | 6 |
| Temperature sensor connection dimensions: | other |
