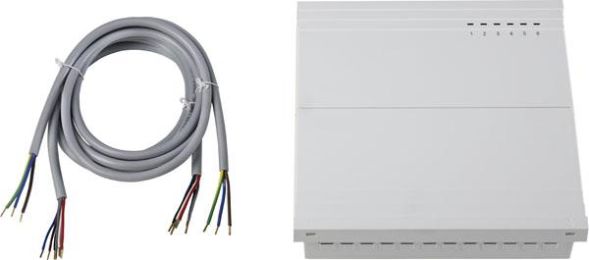

Width: 205mm, height: 211mm, power consumption: 5W, switching capacity of the relays: 2A, protection class (IP): IP31, depth: 56mm, supply voltage: 230V, mandatory for heat pump systems with separate high-efficiency pumps in conjunction with the heat pump manager WPM II, WPM 2.1 or the mixer module MSM. Wall-mounted housing with integrated relay circuit board for up to six 230 volt inputs and six MSR relay outputs. All inputs and outputs via coded Rast5 plugs with screw terminals.
| Property | Value |
| Number of contacts as normally open: | 6 |
| Rated control supply voltage Us at AC 50 Hz: | 230 V |
| Rated control supply voltage Us at AC 60 Hz: | 230 V |
| Type of voltage for actuation: | AC |
| Design of the electrical connection: | Screw connection |
| Height: | 211 mm |
| Width: | 205 mm |
| Depth: | 56 mm |
| Switching behavior of the drive: | monostable |
| Type of switching contact: | Single contact |
| With positively guided contacts: | no |
| With removable terminals: | no |
| Protection class (IP): | IP31 |
| With LED display: | no |
Features
Type of switching contact
Single contact
Switching behavior of the drive
Monostable
With positively guided contacts
No
Manufacturer
HAN
230381
GTIN
4017212303818
Number of contacts as normally open
6
Design of the electrical connection
Screw connection
Rated control supply voltage Us at AC 50 Hz
230V
Rated control supply voltage Us at AC 60 Hz
230V
Width
205 mm
Height
211 mm
With LED display
No
With removable clamps
No
IP protection)
IP31
Voltage type for actuation
AC
Depth
56 mm
