TCS PPUF04-EN/02

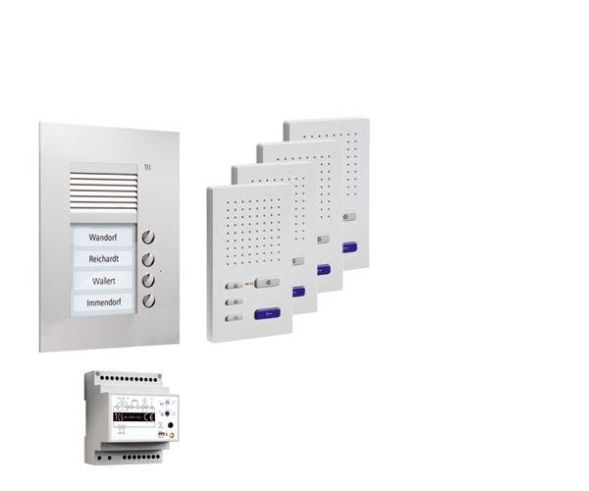

TCS PRE:PACK Audio PPUF04-EN/02 for 4 residential units, Manufacturer: TCS TürControlSysteme AG, Production: Made in Germany, Item number: PPUF04-EN/02, PACKAGE DESCRIPTION, pre:pack audio for 4 residential units, indoor station for hands-free calling, outdoor station for flush-mounted installation, pre-configured TCS system components, SCOPE OF DELIVERY, 1x outdoor station PUK04/1-EN, 4x door phone ISW3030-0140, 1x control unit BVS20-SG, door phone ISW3030-0140, AUDIO FEATURES / DEVICE FUNCTIONS, Number of acoustic call distinctions: , 4 (of which up to 2 from outdoor stations) , Voice transmission: Hands-free / two-way communication , (can be activated) , Number of selectable ring tones: 13, automatic hands-free calling after internal call: , can be activated, Audio privacy: yes, automatic call disconnection: yes, call acceptance: on talk button, ring tone disconnection: on call-OFF button, ring tone volume: adjustable, call volume: adjustable, EXTENDED FEATURES, door opener function: on door opener button, light switch function: on light button, control function: on function button, parallel call: can be activated, LED (red): ring tone disconnection, LED (green): door and internal calls (short-term storage), busy indicator, functionally expandable: installation slots for call relay, radio signal device, EnOcean radio interface, mounting type: surface-mounted on flush-mounted box /, table-top mounting, housing type: surface-mounted housing, housing material: plastic (matte), housing color: white, base: can be pre-installed with plugged-in, screw terminal, number of wires: 2- or 3-wire possible, installation mix audio, video, access in one system: , possible, error display: optical / acoustic, (sum error display on both LEDs), commissioning and configuration: manual, with service device, with configuration software, TECHNICAL DATA, technology: 2-wire TCS:BUS, current consumption, idle: 0.8 mA, current consumption, maximum: 74 mA, surface-mounted housing HxWxD mm: 180x100x25, permissible ambient temperature: -5 to +40 °C, OPTIONAL ACCESSORIES, table accessories: ZIT3030-0010, outdoor station PUK04/1-EN, DEVICE FEATURES, audio outdoor station, number of bell buttons: 4, mounting type: flush-mounted, housing type: front panel with flush-mounted box, integrated loudspeaker, housing material: aluminum, housing color: natural anodized, material of bell buttons: metal with maintenance-free contacts, shatter-proof nameplate glass, energy-saving LED nameplate lighting, opening principle: win:clip, Voice output volume: adjustable, Microphone sensitivity volume: adjustable, EXTENDED FEATURES, Light switch function: on unprogrammed bell button, Nameplates: white backlit, Number of wires: 3-wire required, Installation mix audio, video, Access in one system: , possible, Commissioning and configuration: manual, with service device, with configuration software, System configuration memory: interchangeably plugged in, TECHNICAL DATA, Technology: 2-wire TCS:BUS, Current consumption, idle: 19 mA, Current consumption, maximum: 36 mA, Front panel HxWxD mm: 208x150x3, Flush-mounted box HxWxD mm: 159x126x40, Nameplate HxW mm: 19x62, Permissible ambient temperature: -20 to +50 °C, UV resistance: unlimited, SCOPE OF DELIVERY, for changing the nameplates: win:clip key, for labeling: Nameplates, supply and control unit BVS20-SG, DEVICE FUNCTIONS, supply and control unit: for small audio systems, features: light switching and door opener relay, programming button, door opener function with integrated power supply, light switching function with potential-free relay contact, door opener time manually adjustable, light switching time manually adjustable, housing shape: series installation housing 4 HP for top hat rail, TECHNICAL DATA, input voltage: 230 V (188 to 260 V), 50/60 Hz
