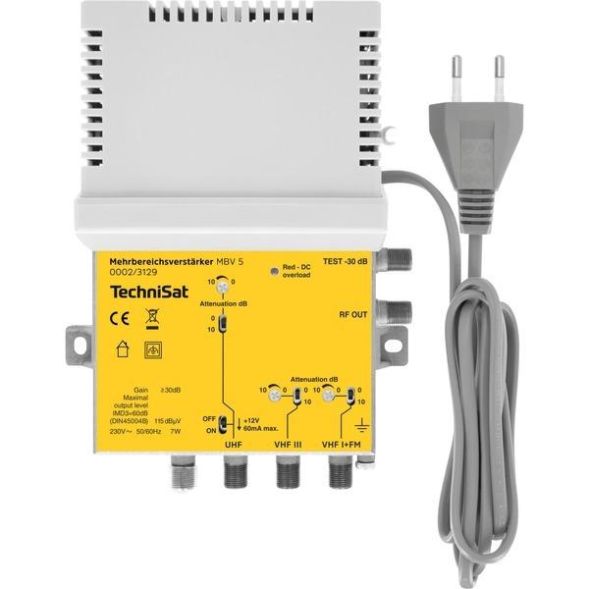

Due to its technical values, the TechniSat multi-range amplifier MBV 5 is ideal for use in medium and large antenna distribution systems. The device has three inputs. Input 1: VHF + VHF band I Input 2: VHF band III (for DAB+) Input 3: UHF (for DVB-T/T2) The complete antenna signal is available at a combined output. The amplification of the MBV 5 is 30 or 34 dB per input. Since in practice it often happens that the input levels of the installed antennas are different, the MBV 5 is equipped with a level control for each input. This makes it possible to continuously attenuate the input level by 0 to 20 dB. The multi-range amplifier MBV 5 has an integrated power supply.
| Property | Value |
| Type: | Amplifier |
| Color: | silver/yellow |
| EAN: | 4019588231290 |
| Manufacturer no.: | 0002/3129 |
| Frequency range: | 47 - 862 MHz |
| Inputs: | 3x F connectors |
| Remote supply voltage: | 12 V |
| Feature: | IP20 protection class, -30 dB measuring output, built-in power supply |
| Dimensions: | Width: 135 mm x Height: 180 mm x Depth/Length: 50 mm |
| Weight: | 656 grams |
Features
EAN
4019588231290
Manufacturer
HAN
0002/3129
GTIN
4019588231290
Dimensions
Width: 135 mm x Height: 180 mm x Depth/Length: 50 mm
Color
Feature
IP20 protection class, -30 dB measuring output, built-in power supply
Weight
656 grams
Manufacturer No.
0002/3129
Type
