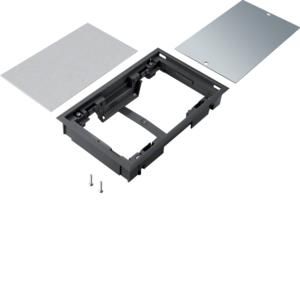

Blind cover ultra-flat E04 147x247mm for 5mm floor covering polyamide deep black. Supply unit / blind cover for ultra-flat installation depths in accordance with DIN EN 50085-1 and DIN EN 50085-2-2, including fastening set for clamping range 5 - 15 mm plus cover covering thickness, suitable for floor boxes, screed-flush and above-floor duct systems, with covering protection frame.
| Property | Value |
| Installation length: | 147 mm |
| Installation width: | 247 mm |
| External length: | 161 mm |
| External width: | 261 mm |
| With Floor covering recess: | yes |
| RAL number: | 9005 |
| Color: | black |
| Suitable for wet care: | no |
| Suitable for underfloor duct: | yes |
| Suitable for hollow floor installation: | yes |
| Suitable for raised floor installation: | yes |
| Depth of floor covering recess: | 5 mm |
| Floor covering protection frame: | yes |
| Min. installation depth: | 50 mm |
| Protection class (IP): | IP20 |
