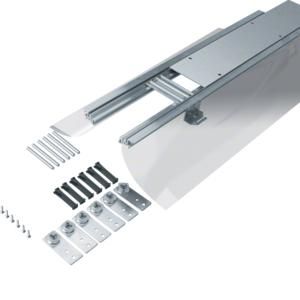

Floor duct flush with screed with foil sheet steel BKF 150x (145-190) mm. Screed-flush installation duct in accordance with DIN EN 50085-1 and DIN EN 50085-2-2, with flexible film formwork, consisting of: duct side profiles made of aluminum, traverses, screed anchors, floor covering application profiles (0 or 4 mm) made of plastic, leveling clamps with duct connectors and leveling pins, screwed blind covers, suitable for dry-maintained floors, acoustically decoupled, pre-assembled at the factory.
| Property | Value |
| Option for decoupling lower part from building structure: | yes |
| Material thickness of cover: | 3 mm |
| Max. Number of moves: | 1 |
| Min. Screed height: | 145 mm |
| With partition wall: | no |
| Surface side wall/floor pan: | other |
| Partition wall fastening: | screws |
| Width: | 150 mm |
| Levelling range: | 145 to 190 mm |
| Locking lid fastening: | no |
| Floor care: | dry |
| Bottom pan: | no |
| Side wall/base pan material: | plastic |
| Lid material: | steel |
| Cover mounting opening: | no |
| Length: | 2400 mm |
