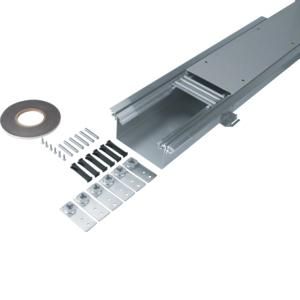

Floor duct flush with screed with tray/sealing option steel BKWD 200x (80-120) mm. Flush-mounted installation duct in accordance with DIN EN 50085-1 and DIN EN 50085-2-2, with sealing option for blind covers and covers, with base tray, consisting of: duct side profiles made of aluminum, traverses, screed anchors, floor covering application profiles (0 or 4 mm) made of plastic, leveling clamps with duct connectors and leveling pins, screwed blind covers, suitable for dry-maintained floors, acoustically decoupled, pre-assembled at the factory.
| Property | Value |
| Option for decoupling lower part from building structure: | yes |
| Material thickness of cover: | 3 mm |
| Max. Number of moves: | 1 |
| Min. Screed height: | 80 mm |
| With partition wall: | no |
| Surface side wall/floor pan: | galvanized |
| Partition wall fastening: | other |
| Width: | 200 mm |
| Leveling range: | 80 to 120 mm |
| Locking lid fastening: | no |
| Floor care: | dry |
| Bottom pan: | yes |
| Side wall/base pan material: | steel |
| Lid material: | steel |
| Cover mounting opening: | no |
| Length: | 2400 mm |
