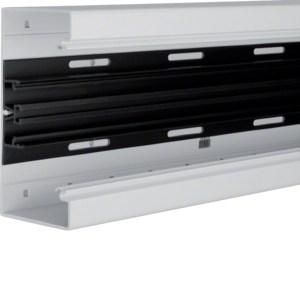

C-profile parapet duct bottom part for device installation made of PVC to BR 85x170mm light grey. Duct bottom part for the electrical installation duct system parapet duct made of plastic in accordance with DIN EN 50085-1 as device installation duct. With bottom perforation for direct wall mounting and additional rectangular perforation for tool-free fastening of the duct using clip technology on brackets. With C-profile for fastening devices, device installation boxes with quick fastening and partition walls. Couplings for simple and precise duct installation, partition walls and cable retention clips available as accessories. Note: Sound and fire protection measures must be carried out professionally.
| Property | Value |
| Width: | 170 mm |
| Length: | 2000 mm |
| Depth: | 83 mm |
| RAL number: | 7035 |
| Material: | Plastic |
| Halogen-free: | no |
| Design rectangular: | yes |
| Number of top parts: | 1 |
| Symmetrical: | yes |
| Material quality: | Polyvinyl chloride (PVC) |
| Surface: | untreated |
| Rear wall design (inside): | continuous C-profile |
| With protective film: | yes |
| Number of plug-in partitions: | 1 |
| With channel connector: | yes |
| Mounting holes in the base: | yes |
| Mounting type of upper parts: | internal |
| With cable retaining clip: | no |
| Usable cross-section: | 13180 mm² |
| Upper parts included: | no |
Features
Minimal order
2 meters
Manufacturer
HAN
BR8517017035
GTIN
4012740151573
Width
170 mm
Halogen free
No
Length
2000 mm
Surface
Untreated
RAL number
7035
Depth
83 mm
Material
Plastic
Material quality
Polyvinyl chloride (PVC)
