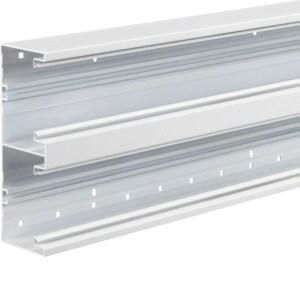

Front-locking parapet duct lower part BRA 68x210mm OT 2x80mm made of traffic white aluminum. Duct lower part for the electrical installation duct system parapet duct made of aluminum in accordance with DIN EN 50085-1 as a device installation duct. With bottom perforation for direct wall mounting and additional rectangular perforation for tool-free fastening of the duct using clip technology on brackets. With C-profile for fastening devices, device installation boxes with quick fastening and partition walls. With top section width 80 mm, front-locking device installation for tool-free assembly is also possible. Couplings for potential equalization as well as for simple and precise duct connection, partition walls and cable retention clips are available as accessories. Note: Potential equalization, earthing, sound and fire protection measures must be carried out professionally.
| Property | Value |
| Width: | 210 mm |
| Length: | 2000 mm |
| Depth: | 68 mm |
| RAL number: | 9016 |
| Material: | Aluminium |
| Halogen-free: | yes |
| Design rectangular: | yes |
| Number of tops: | 2 |
| Top width 1: | 80 mm |
| Top width 2: | 80 mm |
| Symmetrical: | yes |
| Material quality: | other |
| Surface: | coated |
| Rear wall design (inside): | continuous C-profile |
| With Protective film: | yes |
| Number of pluggable partitions: | 2 |
| With channel connector: | yes |
| Mounting holes in the base: | yes |
| Mounting type of top parts: | internal |
| With cable retaining clip: | no |
| Usable cross-section: | 12060 mm² |
| Top parts included: | no |
