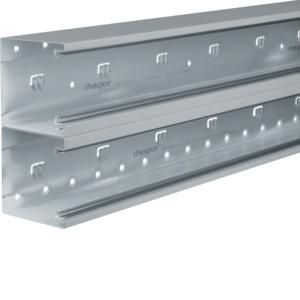

BRS parapet duct lower part 100x210mm, upper part 2x80mm made of galvanized sheet steel. Two-compartment duct lower part for the electrical installation duct system parapet duct made of sheet steel in accordance with DIN EN 50085-1 as a device installation duct. With fixed partition wall for system separation. With bottom perforation for direct wall mounting and additional rectangular perforation for tool-free fastening of the duct using clip technology on brackets. With front-locking, tool-free device installation for fastening devices, device installation boxes with quick fastening. Couplings for potential equalization as well as for simple and precise duct connection, partition walls and cable retention clips available as accessories. Note: Potential equalization, earthing, sound and fire protection measures must be carried out professionally.
| Property | Value |
| Width: | 210 mm |
| Length: | 2000 mm |
| Depth: | 100 mm |
| Color: | other |
| Material: | Steel |
| Halogen-free: | yes |
| Design rectangular: | yes |
| Number of tops: | 2 |
| Top width 1: | 80 mm |
| Top width 2: | 80 mm |
| Symmetrical: | yes |
| Material quality: | other |
| Surface: | strip-galvanized |
| Rear wall design (inside): | with locking lugs |
| With protective film: | yes |
| Number of pluggable partitions: | 2 |
| With channel connector: | yes |
| Mounting holes in the base: | yes |
| Mounting type of top parts: | internal |
| With cable retaining clip: | no |
| Usable cross-section: | 19310 mm² |
| Top parts supplied: | no |
