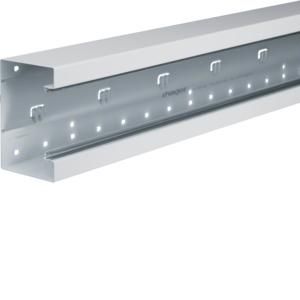

Front-locking parapet duct lower part for BRS 83x130mm upper part 80mm steel white. Duct lower part for the electrical installation duct system parapet duct made of sheet steel in accordance with DIN EN 50085-1 as a device installation duct. With bottom perforation for direct wall mounting and additional rectangular perforation for tool-free fastening of the duct using clip technology on brackets. With front-locking, tool-free device installation for fastening devices, device installation boxes with quick fastening. With upper part width 120 mm C-profile device installation. Couplings for potential equalization as well as for simple and precise duct connection, partition walls and cable retention clips available as accessories. Note: Potential equalization, earthing, sound and fire protection measures must be carried out professionally.
| Property | Value |
| Width: | 130 mm |
| Length: | 2000 mm |
| Depth: | 83 mm |
| RAL number: | 9016 |
| Material: | Steel |
| Halogen-free: | yes |
| Design rectangular: | yes |
| Number of top parts: | 1 |
| Top part width 1: | 80 mm |
| Symmetrical: | yes |
| Material quality: | other |
| Surface: | coated |
| Rear panel design (inside): | with locking lugs |
| With protective film: | yes |
| Number of pluggable Partition walls: | 1 |
| With channel connector: | yes |
| Mounting holes in the floor: | yes |
| Mounting type of upper parts: | internal |
| With cable retaining clip: | no |
| Usable cross-section: | 9940 mm² |
| Top parts supplied: | no |
