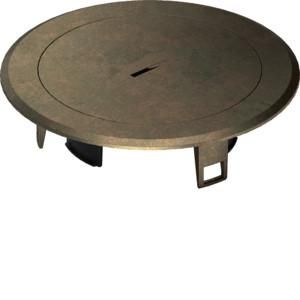

Metal tube cover for installation box R02 old brass. Metal cover with integrated reversible tube for floor socket according to DIN EN 50085-1 and DIN EN 50085-2-2, including installation set, with carpet protection frame, in different colors. When in use, the reversible tube offers splash protection of up to 10 mm and when not in use can be sunk invisibly into the floor box. Can be driven over by a car when closed. Use in wet-cleaned floors indoors in accordance with DIN EN 50085-2-2.
| Property | Value |
| Installation diameter: | 122 mm |
| Outer diameter: | 150 mm |
| With floor covering recess: | no |
| Suitable for wet cleaning: | yes |
| Suitable for underfloor duct: | yes |
| Suitable for hollow floor installation: | yes |
| Suitable for raised floor installation: | yes |
| Floor covering protection frame: | yes |
| Min. installation depth: | 86 mm |
Features
HAB
BSR02MTM for can R02 old brass
Manufacturer
HAN
BSR02MTM
GTIN
4012740027540
Outer diameter
150 mm
Installation diameter
122 mm
