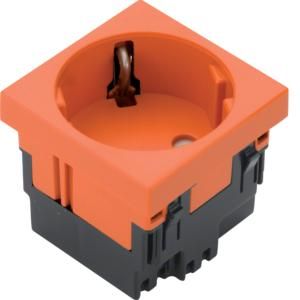

Single socket 33° alignment 16A/250V Rastec 45 pure orange. Safety socket according to DIN0620 for installation as a system component.
| Property | Value |
| Version: | SCHUKO |
| RAL number (similar): | 2004 |
| Number of units: | 1 |
| Color: | orange |
| Suitable for protection class (IP): | IP20 |
| Nominal voltage: | 250 V |
| Rated current: | 16 A |
| Lockable: | no |
| With increased contact protection: | yes |
| With hinged lid: | no |
| Mounting type: | other |
| Text field/labeling area: | no |
| Frequency: | 50 to 60 Hz |
| Ejection mechanism: | no |
| Halogen-free: | yes |
| Overvoltage protection: | no |
| Residual current protection: | no |
| Special power supply: | additional safety supply (red) |
| Twisted central insert: | yes |
| Connection type: | Plug-in terminal |
| With fine fuse: | no |
| Mounting type: | Snap-in fastening |
| Material: | other |
| Material quality: | Thermoplastic |
| Surface: | untreated |
| Surface finish: | matt |
| Number of modules (with modular construction): | 2 |
| Device width: | 45 mm |
| Device height: | 45 mm |
| Device depth: | 40 mm |
| Insulated Installation: | no |
| With loop-through function: | yes |
| With on/off switch: | no |
| With built-in USB power supply: | no |
| With function lighting: | no |
| With orientation lighting: | no |
| Transparent: | no |
| Protective contact: | yes |
| Round protective conductor contact: | no |
| Number of active contacts (round): | 2 |
| With signal lamp: | no |
| Number of phases: | 1 |
| Antibacterial treatment: | no |
| Min. depth of device box: | 45 mm |
Features
Way
Manufacturer
HAN
ESR1332004
GTIN
4012002245934
Lockable
No
Connection type
Plug-in terminal
Antibacterial treatment
No
Number of Units
1
Number of modules (for modular construction)
2
Number of phases
1
Number of active contacts (approx.)
2
Version
Surface finish
Frosted
Ejection mechanism
No
Mounting type
Snap-on fastening
Color
Residual current protection
No
Frequency
50 to 60 Hz
Suitable for protection class (IP)
IP20
Device width
45 mm
Device height
45 mm
Device depth
40 mm
Halogen free
Yes
Insulated installation
No
Min. depth of the device box
45 mm
With loop-through function
Yes
With on/off switch
No
With micro fuse
No
With functional lighting
No
With hinged lid
No
With orientation lighting
No
With signal lamp
No
With built-in USB power supply
No
With increased contact protection
Yes
Mounting type
Other
Nominal voltage
250V
Rated current
16A
Surface
Untreated
RAL number (similar)
2004
Protective contact
Yes
Protective conductor contact round
No
Special power supply
Additional safety supply (red)
Text field/label area
No
Transparent
No
Twisted central insert
Yes
Material
Other
Material quality
Thermoplastic
Overvoltage protection
No
