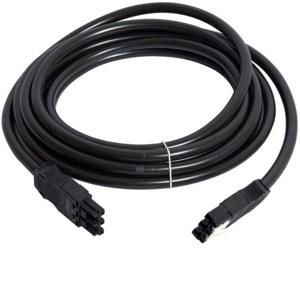

GKWAD13050 Winsta 3x2.5qmm 5m Cca sw connecting cable manufacturer article number: GKWAD13050, manufacturer article name: GKWAD13050 Winsta 3x2.5qmm 5m Cca sw
| Property | Value |
| Total length: | 5000 mm |
| Version side 1: | Socket |
| Version side 2: | Plug |
| Sheath color: | black |
| Rated voltage: | 250 V |
| Stripping length: | 9 mm |
| Conductor nominal cross-section: | 2.5 mm² |
| Rated impulse voltage: | 4 kV |
| Voltage resistance: | 1 mOhm |
| Housing color: | black |
| Protection class (IP): | IP20 |
| Rated current: | 16 A |
| Color of the Coding/contact insert: | white |
| Type of pre-assembled cable: | connecting cable |
| Mechanical coding: | yes |
| Pole marking: | L, N, PE |
| Cable permanently temperature-resistant up to: | 70 °C |
| Insulating part permanently temperature-resistant up to: | 105 °C |
| Surface treatment of the contacts: | other |
| Halogen-free: | yes |
| Strip length: | 55 mm |
| Number of poles: | 3 |
| Locking type: | integrated in the connector |
| Cable diameter: | 10 mm |
| Cable type: | H05Z1Z1-F |
| Max. operating temperature on the conductor: | 70 °C |
Features
Cable diameter
10 mm
Cable type
H05Z1Z1-F
Rated surge voltage
4 kV
Conductor nominal cross section
2.5 mm²
HAB
GKWAD13050 Winsta 3x2.5qmm 5m Cca sw
Manufacturer
HAN
GKWAD13050
GTIN
4012740986861
Rated voltage
250V
Rated current
16A
Housing color
Black
Overall length
5000 mm
Halogen free
Yes
Coat color
Black
Number of poles
3
IP protection)
IP20
