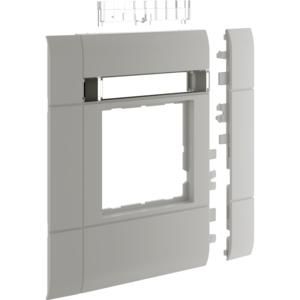

Modular frame panel, BRH/A/S, ZS 50, OT 120, hfr, labelling field, painted aluminium. Frame panel for parapet duct, modular, can be aligned at a combination distance of 71 mm, cut-concealed to the upper section of the duct. For accommodating central panels, covers, rockers or adapter frames from installation switch ranges measuring 50 x 50 mm. Adapted to the outer contour of the parapet duct to reduce dirt deposits and to simplify cleaning. For use with aligned device boxes for parapet ducts, with reduced installation depth for flush closure with the closure contour of the parapet duct. Can be combined with socket panel for parapet duct using an optional intermediate piece. Integrated labelling field for mounting on the installation device or the device box, compatible with 9 mm labelling tapes.
| Property | Value |
| Top width: | 120 mm |
| Length: | 103 mm |
| RAL number: | 9006 |
| Width of opening: | 50 mm |
| Height of opening: | 50 mm |
| Halogen-free: | yes |
| With Label field: | yes |
| Number of units: | 1 |
| Device type: | Devices with central plate |
| With protective film: | no |
| Design: | smooth |
| Material: | plastic |
| Material quality: | other |
| Surface: | wet painted |
| Mounting type: | inside |
| cut lamination: | yes |
