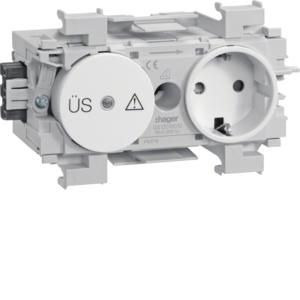

TEHALIT GS12019016 + fine protection traffic white socket

Description

Features

Reviews

Socket + fine protection with Wago plug/clamp technology, front locking in traffic white. Channel socket 1-way and overvoltage protection, fine protection overvoltage category III, with increased contact protection, pre-wired, with quick fastening for front-locking device installation, can be connected in series using a 3-pin connector system. Cable connection via plug-in terminals 1.5 - 2.5 mm² or via reverse polarity protected connector system.

Property	Value
Version:	SCHUKO
RAL number (similar):	9016
Number of units:	2
Color:	white
Suitable for protection class (IP):	IP20
Nominal voltage:	250 V
Nominal current:	16 A
Lockable:	no
With increased contact protection:	yes
With hinged lid:	no
Mounting type:	Device installation duct
Text field/labeling area:	yes
Frequency:	50 to 60 Hz
Ejection mechanism:	no
Halogen-free:	yes
Overvoltage protection:	yes
Residual current protection:	no
Special power supply:	without special power supply
Twisted central insert:	no
Connection type:	Plug-in terminal
With fine fuse:	no
Mounting type:	Snap-in fastening
Material:	Plastic
Material quality:	Thermoplastic
Surface:	untreated
Surface finish:	matt
Number of modules (with modular construction):	2
Device width:	120 mm
Device height:	50 mm
Device depth:	54 mm
Insulated Installation:	yes
With loop-through function:	yes
With on/off switch:	no
With built-in USB power supply:	no
With function lighting:	yes
With orientation lighting:	no
Impact resistance:	IK07
Transparent:	no
Protective contact:	yes
Round protective conductor contact:	no
With signal lamp:	no
Number of phases:	1
Antibacterial treatment:	no
