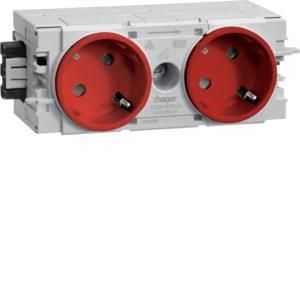

2-way socket 45° Wago plug/clamp technology, halogen-free, C-profile, traffic red. 2-way channel socket with increased contact protection, 45 degree socket housing, pre-wired, with quick fastening for C-profile device installation, can be connected in series using a 3-pin connector system. Cable connection via plug-in terminals 1.5 - 2.5 mm or via reverse polarity protected connector system.
| Property | Value |
| Version: | SCHUKO |
| RAL number (similar): | 3020 |
| Number of units: | 2 |
| Color: | red |
| Suitable for protection class (IP): | IP20 |
| Nominal voltage: | 250 V |
| Nominal current: | 16 A |
| Lockable: | no |
| With increased contact protection: | yes |
| With hinged lid: | no |
| Mounting type: | Device installation duct |
| Text field/labeling area: | yes |
| Frequency: | 50 to 60 Hz |
| Ejection mechanism: | no |
| Halogen-free: | yes |
| Overvoltage protection: | no |
| Residual current protection: | no |
| Special power supply: | additional safety supply (red) |
| Twisted central insert: | yes |
| Connection type: | Plug-in terminal |
| With fine fuse: | no |
| Fastening type: | Claw/screw fastening |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Surface: | untreated |
| Surface finish: | matt |
| Number of modules (with modular construction): | 2 |
| Device width: | 120 mm |
| Device height: | 50 mm |
| Device depth: | 61 mm |
| Insulated installation: | yes |
| With loop-through function: | yes |
| With on/off switch: | no |
| With built-in USB power supply: | no |
| With function lighting: | no |
| With orientation lighting: | no |
| Impact resistance: | IK07 |
| Transparent: | no |
| Protective contact: | yes |
| Round protective conductor contact: | no |
| With signal lamp: | no |
| Number of phases: | 1 |
| Antibacterial treatment: | no |
Features
Color
Red
Gang
Way
Manufacturer
HAN
GS20103020
GTIN
4012740851268
Lockable
No
Connection type
Plug-in terminal
Antibacterial treatment
No
Number of Units
2
Number of modules (for modular construction)
2
Number of phases
1
Version
Surface finish
Frosted
Ejection mechanism
No
Mounting type
Claw/screw fastening
Color
Residual current protection
No
Frequency
50 to 60 Hz
Suitable for protection class (IP)
IP20
Device width
120 mm
Device height
50 mm
Device depth
61 mm
Halogen free
Yes
Insulated installation
Yes
With loop-through function
Yes
With on/off switch
No
With micro fuse
No
With functional lighting
No
With hinged lid
No
With orientation lighting
No
With signal lamp
No
With built-in USB power supply
No
With increased contact protection
Yes
Mounting type
Device installation channel
Nominal voltage
250V
Rated current
16A
Surface
Untreated
RAL number (similar)
3020
Impact resistance
IK07
Protective contact
Yes
Protective conductor contact round
No
Special power supply
Additional safety supply (red)
Text field/label area
Yes
Transparent
No
Twisted central insert
Yes
Material
Plastic
Material quality
Thermoplastic
Overvoltage protection
No
