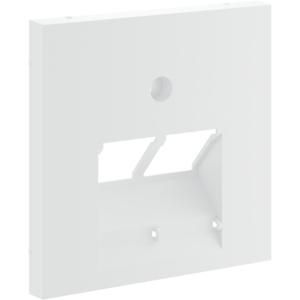

Central plate UAE 2-way for frame panel 55 halogen-free traffic white. Central plate for UAE socket 2-way, mounting frame Keystone 2-way, mounting frame type A (BTR E-DAT module format) 2-way, connection module 2 x RJ45, data connection patch module. Without labeling field. For use with frame panels for parapet ducts with central panel dimensions 55 x 55 mm and optionally integrated labeling field.
| Property | Value |
| Mounting type: | Mounting with screw |
| Color: | white |
| RAL number (similar): | 9016 |
| Device height: | 55 mm |
| Device width: | 55 mm |
| Device depth: | 13 mm |
| Application: | UAE/IAE |
| With dust protection: | no |
| Mounting type: | other |
| Surface: | untreated |
| With hinged lid: | no |
| Suitable for protection class (IP): | IP00 |
| Composition: | Central plate |
| Support ring: | yes |
| With print: | no |
| Material: | Plastic |
| Material quality: | Thermoplastic |
| Halogen-free: | yes |
| Surface finish: | matt |
| With strain relief: | no |
| Luster terminal: | no |
| Number of modules (for modular design): | 2 |
| Transparent: | no |
| Outlet direction: | slanted |
| With sockets/couplings: | no |
| Suitable for number of sockets/couplings: | 2 |
| Sockets shielded: | no |
| Shielded housing: | yes |
| Min. depth of device box: | 40 mm |
Features
HAB
GZUAE2A9016 UAE 2-way hf traffic white
Manufacturer
HAN
GZUAE2A9016
GTIN
4012740993456
Number of modules (for modular construction)
2
Surface finish
Frosted
Outlet direction
Aslant
Mounting type
Fastening with screw
Shielded sockets
No
Color
Suitable for number of sockets/couplings
2
Suitable for protection class (IP)
IP00
Housing shielded
Yes
Device width
55 mm
Device height
55 mm
Device depth
13 mm
Halogen free
Yes
Lamp terminal
No
Min. depth of the device box
40 mm
With print
No
With bushings/couplings
No
With hinged lid
No
With dust protection
No
With strain relief
No
Mounting type
Other
Surface
Untreated
RAL number (similar)
9016
Support ring
Yes
Transparent
No
Use
UAE/IAE
Material
Plastic
Material quality
Thermoplastic
Compilation
Central plate
