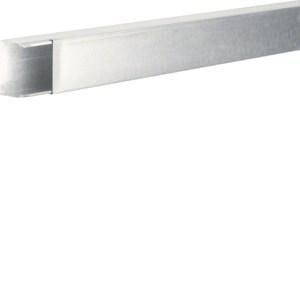

Cable routing duct made of sheet steel LFS 30x45mm traffic white. Electrical installation duct system Cable routing duct made of sheet steel in accordance with DIN EN 50085-1 for laying cables. Duct bottom/top with pre-punched holes in the bottom at 200 mm intervals. Couplings for the equipotential bonding of the duct bottoms and for simple and precise duct connections. When installed overhead, the duct must be mounted using sheet steel clamps. Note: Potential equalization, earthing, sound and fire protection measures must be carried out professionally.
| Property | Value |
| Length: | 2000 mm |
| Height: | 30 mm |
| Width: | 45 mm |
| Color: | white |
| RAL number: | 9016 |
| Material: | steel |
| Material quality: | other |
| Usable cross-section: | 970 mm² |
| Transparent: | no |
| Halogen-free: | yes |
| Fastening type: | bottom perforation |
| Suitable for functional integrity: | yes |
| Surface: | strip-galvanized and coated |
| Cover design: | loose |
| With cable retaining clip: | no |
| With protective film: | no |
| With channel connector: | yes |
| Delivery on a roll: | no |
| Pre-punched: | no |
Features
Suitable for Functional integrity
Yes
Pre-punchings
No
HAB
LFS3004509016 30x45mm traffic white
Minimal order
2 meters
Manufacturer
HAN
LFS3004509016
GTIN
4012740007313
Cover design
Loose
Mounting type
Bottom perforation
Width
45 mm
Color
Halogen free
Yes
Height
30 mm
Length
2000 mm
Surface
Strip galvanized and coated
RAL number
9016
Transparent
No
Material
Steel
Material quality
Other
