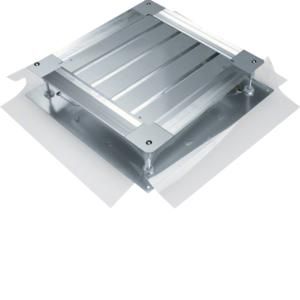

Universal floor box with base plate size 3 498x498x (120-170) mm. Universal floor box according to DIN EN 50085-1 and DIN EN 50085-2-2 suitable for all duct widths up to nominal size, with flexible film formwork, base plate, assembly protection cover and internal stepless height leveling, acoustically decoupled, cracks in the screed in the installation area are minimized by movable bearings.
| Property | Value |
| Duct width: | 190 to 340 mm |
| Side wall material: | Plastic |
| Min. Screed height: | 120 mm |
| Option for decoupling upper part from lower part: | yes |
| Nominal size: | 340 mm |
| Suitable for screed-covered underfloor duct: | yes |
| Suitable for screed-flush closed underfloor duct: | no |
| Leveling range: | 120 to 170 mm |
| Mounting cover holder: | yes |
| Seal installation option: | no |
| Bottom plate: | yes |
| Cover design: | universal |
