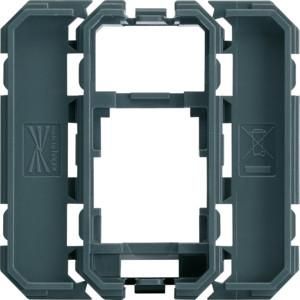

Keystone adapter frame 1xRJ45 19.3x14.8 mm, module width 22.5x45 or 45x45 mm. Rastec 45 Keystone adapter frame 1xRJ45 19.3x14.8 mm. The device corresponds to a module width of 45 x 45 mm or 22.5 x 45 mm (by breaking out the side parts), can be aligned and is supplied without a cover. For installation as a system component.
| Property | Value |
| Mounting type: | Clamp fastening |
| Color: | gray |
| RAL number (similar): | 7011 |
| Device height: | 45 mm |
| Device width: | 45 mm |
| Device depth: | 21.5 mm |
| Labeling field: | without labeling field |
| Use: | Modular jack |
| With dust protection: | no |
| Mounting type: | Flush-mounted |
| Surface: | untreated |
| With hinged lid: | no |
| Suitable for protection class (IP): | IP20 |
| Composition: | Base element |
| Support ring: | no |
| With print: | no |
| Material: | other |
| Material quality: | other |
| Surface finish: | matt |
| With strain relief: | no |
| Lamp terminal: | no |
| Number of modules (with modular construction): | 2 |
| Transparent: | no |
| Outlet direction: | straight |
| With sockets/couplings: | no |
| Suitable for number of sockets/couplings: | 1 |
| Sockets shielded: | no |
| Housing shielded: | no |
| Min. depth of device box: | 22 mm |
Features
HAB
WXF202 Keystone 1xRJ45 19.3x14.8mm
Manufacturer
HAN
WXF202
GTIN
3250617192026
Number of modules (for modular construction)
2
Surface finish
Frosted
Outlet direction
Straight
Mounting type
Clamp fastening
Label field
Without label field
Shielded sockets
No
Color
Suitable for number of sockets/couplings
1
Suitable for protection class (IP)
IP20
Housing shielded
No
Device width
45 mm
Device height
45 mm
Device depth
21.5 mm
Lamp terminal
No
Min. depth of the device box
22 mm
With print
No
With bushings/couplings
No
With hinged lid
No
With dust protection
No
With strain relief
No
Mounting type
Flush-mounted
Surface
Untreated
RAL number (similar)
7011
Support ring
No
Transparent
No
Use
Modular Jack
Material
Other
Material quality
Other
Compilation
Basic element
