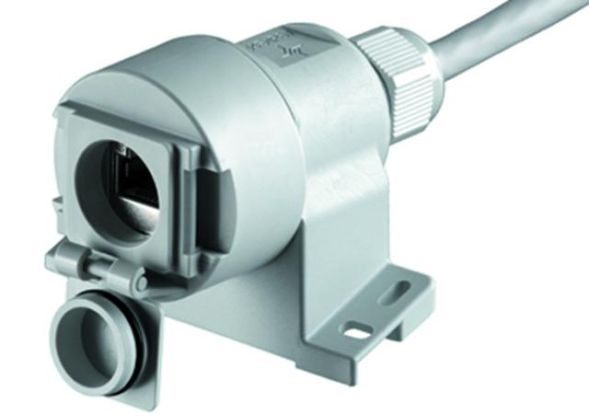

Features: Connector face according to IEC 61076-3-106 variant 6, connector for Automation Island according to IEC 61918, 8 contacts for 10 Gigabit Ethernet, large-area 360° shield contact, captive cover for protection class IP67 for tight sealing when not plugged in, easy-to-open, reusable modules, fire protection class UL94 V0, connector face can be mounted in two directions offset by 90°, connection of commercially available RJ45 plugs in protection class IP20 possible, connector face according to IEC 61076-3-106 variant 6, connector for Automation Island according to IEC 61918, 8 contacts for 10 Gigabit Ethernet, large-area 360° shield contact, captive cover for protection class IP67 for tight sealing when not plugged in, easy-to-open, reusable modules, Fire protection class UL94 V0, connector face can be mounted in two directions offset by 90°, connection of commercially available RJ45 plugs with protection class IP20 possible Notes: Fire protection class UL94 V0 Short name: STX V6 AP socket Cat.6A (ISO/IEC)
| Property | Value |
| Shielded: | yes |
| Category: | 6A (IEC) |
| Color: | Silver |
| AWG range: | 22 to 24 |
| Special tool required: | yes |
| Connector type: | RJ45 8(8) |
| Design: | Socket (Jack) |
| Suitable for round cables: | no |
| Suitable for flat cables: | no |
| Suitable for stranded conductors: | yes |
| Suitable for solid conductors: | yes |
