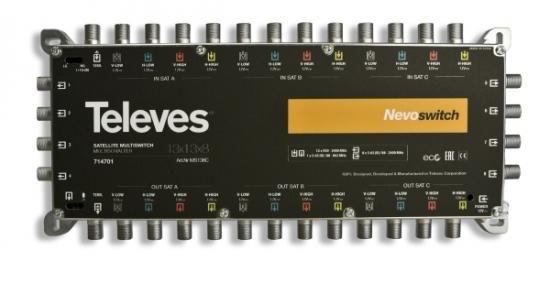

Nevo multiswitch 13in8 in a cast housing, cascadable, terminating resistors that can be switched on and off in each individual and cascade switch, 10dB input gain switch for all SAT inputs that can be switched on/off. Through loss SAT: 3dB / Terr.: 2dB, SAT TN attenuation 1-8/9-16/17-24/25-32 = 950 MHz 8/-/-/- and 2400MHz 3/-/-/- dB, Terr. TN attenuation 1-8/9-16/17-24/25-32 = 2/-/-/- RK TN attenuation 40dB, DC pass-through on vertical low and terr., max. input level Sat 102 / Terr. 104 dBµV. Power supply required (MS-NT1228), power supply current consumption 155mA, satellite receiver 33mA, dimensions (WxHxD) = 280x120x30mm
| Property | Value |
| LNB power supply: | 12 V |
| Number of inputs: | 13 |
| Number of trunk outputs: | 13 |
| Subscriber connections: | 8 |
| Terrestrial input: | active |
| Cascadable: | yes |
| Power supply: | without |
| Max. current consumption: | 155 mA |
| Control signal: | 14/18 V, DiSEqC, 0/22 kHz |
| 22 kHz generator: | no |
