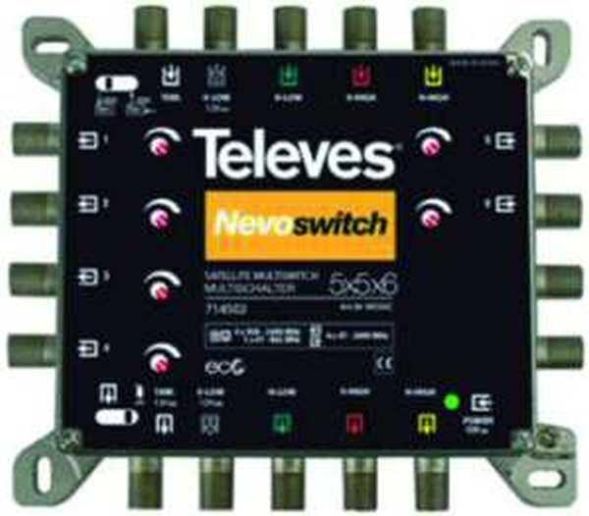

Nevo multiswitch 5in6 in a cast housing, receiver powered, cascadable, terminating resistors that can be switched on and off in each individual and cascade switch, level control 12dB per subscriber. Through loss SAT: 4dB / Terr.: 3dB, subscriber attenuation SAT: 2400MHz 0dB, 950MHz 5dB / Terr.: 2.5dB, DC pass-through on vertical low and terr., max. input level Sat 105 / Terr. 95 dBµV. Power consumption power supply 65mA, satellite receiver 33mA Matching power supply MS-NT1208N, dimensions (WxHxD) = 137x120x30 mm
| Property | Value |
| LNB power supply: | 12 V |
| Number of inputs: | 5 |
| Number of trunk outputs: | 5 |
| Subscriber connections: | 6 |
| Terrestrial input: | active |
| Cascadable: | yes |
| Power supply: | without |
| Max. current consumption: | 65 mA |
| Control signal: | 14/18 V, DiSEqC, 0/22 kHz |
| 22 kHz generator: | no |
