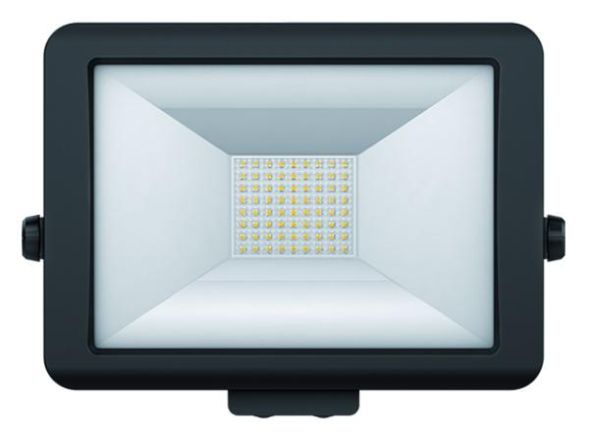

LED spotlight 50 W, black, suitable for outdoor use, can be flexibly expanded with an optional module with motion detector including switching output or light sensor including switching output, spotlight can be rotated 360 °
| Property | Value |
| Max. System power: | 50 W |
| Rated luminous flux according to IEC 62722-2-1: | 3500 lm |
| Housing color: | black |
| Housing material: | aluminum |
| Protection class (IP): | IP65 |
| Socket: | without |
| Light source: | LED not replaceable |
| Protection class: | I |
| With light source: | yes |
| With operating device: | yes |
| Suitable for recessed mounting: | no |
| Length: | 300 mm |
| Width: | 220 mm |
| Height/depth: | 238 mm |
| With motion detector: | no |
| Color temperature: | 5000 K |
| Nominal voltage: | 230 V |
| Beam angle: | wide beam 41-80° |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | no |
| Light distribution: | symmetrical |
| Operating device: | not required |
| Impact resistance: | IK04 |
| Luminaire with limited surface temperature 'D-mark': | no |
| Reflector: | high gloss |
| Luminous flux: | 3500 lm |
| Cover material: | transparent plastic |
| Covering of the lamp with thermal insulation material possible: | no |
| Voltage type: | AC |
| Light color: | white |
| Suitable for track mounting: | no |
| Adjustability: | rotatable and pivotable |
| Suitable for clamp mounting: | no |
| Suitable for pendulum suspension: | no |
| Suitable for podium/floor mounting: | no |
| Suitable for traverse mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | yes |
| Suitable for Cable system: | no |
| Surface: | painted |
| Brushed surface: | no |
| LED nominal current at constant current: | 0 to 10 mA |
| Dimming depending on operating device: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| DMX dimming: | no |
| DSI dimming: | no |
| Potentiometer dimming (integrated in the device): | no |
| GPRS dimming: | no |
| LineSwitch dimming: | no |
| Manufacturer-specific dimming: | no |
| Mains voltage modulation dimming: | no |
| Dimming phase control: | no |
| Dimming phase control: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | yes |
| Light distributor: | Reflector |
| Light emission: | direct |
| Total harmonic distortion (THD): | 27 |
| Protection class (NEMA): | 4 |
| Rated ambient temperature according to IEC62722-2-1: | -20 to 40 °C |
| Type of wiring: | Termination |
| Power factor: | 0.95 |
| Number of poles: | 4 |
| Conductor cross-section: | 2.5 mm² |
| Connectable conductor cross-section: | 0 to 2.5 mm² |
| Connection type: | Screw terminal |
| Luminaire luminous efficacy: | 70.5 lm/W |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Photobiological safety according to EN 62471: | RG0 |
| Colour consistency (McAdam ellipse): | SDCM6 |
Features
Total harmonic distortion (THD)
27
Connectable conductor cross-section
0 to 2.5 mm²
HAB
TheLeda B50L BK black
Manufacturer
HAN
1020688
GTIN
4003468101469
Covering the luminaire with thermal insulation material possible
No
Connection type
Screw terminal
Type of wiring
Diploma
Beam angle
Wide beam 41-80°
Rated luminous flux according to IEC 62722-2-1
3500lm
Rated ambient temperature according to IEC62722-2-1
-20 to 40 °C
Operating device
Not required
Width
220 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
No
Dimming manufacturer-specific
No
Dimming with push button
No
Dimming programmable
No
Color consistency (McAdam ellipse)
SDCM6
Color temperature
5000K
Color rendering index CRI
80-89
Version
Without
Suitable for surface mounting
Yes
Suitable for ceiling mounting
No
Suitable for flush mounting
No
Suitable for clamp mounting
No
Suitable for pendulum suspension
No
Suitable for podium/floor mounting
No
Suitable for rope system
No
Suitable for busbar mounting
No
Suitable for truss mounting
No
Housing color
Black
Glow wire test according to IEC 60695-2-11
650 °C - 30 s
Height/Depth
238 mm
LED nominal current at constant current
0 to 10 mA
Power factor
0.95
Conductor cross-section
2.5 mm²
Luminaire with limited surface temperature D-mark
No
Luminaire luminous efficacy
70.5lm/W
Lamps
LED not replaceable
Light emission
Direct
Light color
White
Luminous flux
3500lm
Light distributor
Reflector
Light distribution
Symmetrical
Length
300 mm
Max. system performance
50W
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
Nominal voltage
230V
Surface
Painted
Brushed surface
No
Without dimming function
Yes
Photobiological safety according to EN 62471
RG0
Number of poles
4
Reflector
High gloss
Impact resistance
IK04
IP protection)
IP65
Protection class (NEMA)
4
Protection class
I
Voltage type
AC
Adjustability
Rotatable and pivotable
Cover material
Plastic transparent
Housing material
Aluminum
