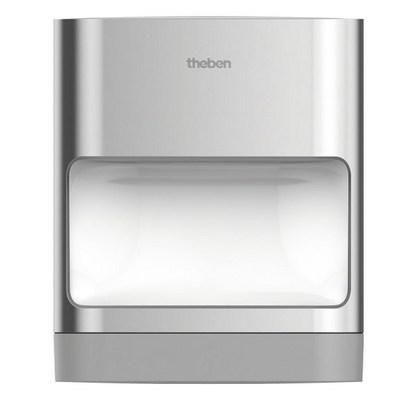

Design-oriented LED light 14 W, light output frontally (spot) and upwards (up), high-quality housing made of anodized extruded aluminum profile, suitable for outdoor use, high protection class IP 55 for outdoor installation, easy installation with plug-in base, can be networked wirelessly, extremely efficient due to high light output, long-lasting LEDs: 50,000 hours service life
| Property | Value |
| Max. System power: | 14 W |
| Rated luminous flux according to IEC 62722-2-1: | 1235 lm |
| Housing color: | Aluminium |
| Housing material: | Aluminium |
| Protection class (IP): | IP55 |
| Socket: | without |
| Light source: | LED not replaceable |
| Protection class: | II |
| With light source: | yes |
| With operating device: | yes |
| Suitable for recessed mounting: | no |
| Length: | 65 mm |
| Width: | 126 mm |
| Height/depth: | 127 mm |
| With motion detector: | no |
| Color temperature: | 3000 K |
| Nominal voltage: | 230 V |
| Beam angle: | wide beam 41-80° |
| Color rendering index CRI: | 80-89 |
| Suitable for ceiling mounting: | no |
| Light distribution: | symmetrical |
| Operating device: | not required |
| Impact resistance: | IK04 |
| Luminaire with limited surface temperature 'D-mark': | no |
| Reflector: | high gloss |
| Luminous flux: | 1235 lm |
| Cover material: | transparent plastic |
| Covering of the lamp with thermal insulation material possible: | no |
| Voltage type: | AC |
| Light color: | white |
| Suitable for track mounting: | no |
| Adjustability: | not adjustable |
| Suitable for clamp mounting: | no |
| Suitable for pendulum suspension: | no |
| Suitable for podium/floor mounting: | no |
| Suitable for traverse mounting: | no |
| With light sensor: | no |
| Suitable for surface mounting: | yes |
| Suitable for Cable system: | no |
| Surface: | powder-coated |
| Brushed surface: | yes |
| LED nominal current at constant current: | 0 to 10 mA |
| Dimming depending on the operating device: | no |
| Dimming 0-10 V: | no |
| Dimming 1-10 V: | no |
| Dimming DALI: | no |
| Dimming DMX: | no |
| Dimming DSI: | no |
| Dimming potentiometer (device integrated): | no |
| Dimming GPRS: | no|
| Dimming LineSwitch: | no |
| Dimming manufacturer-specific: | yes |
| Dimming mains voltage modulation: | no |
| Dimming Trailing edge: | no |
| Dimming leading edge: | no |
| Dimming programmable: | no |
| Dimming RF: | no |
| Dimming Sine Wave Reduction: | no |
| Dimming Touch and Dim: | no |
| Dimming Zigbee: | no |
| Dimming with push button: | no |
| Without dimming function: | no |
| Light distributor: | Reflector |
| Light emission: | direct/indirect |
| Total harmonic distortion (THD): | 27 |
| Protection class (NEMA): | 4 |
| Rated ambient temperature according to IEC62722-2-1: | -25 to 45 °C |
| Type of wiring: | Termination |
| Power factor: | 0.95 |
| Number of poles: | 4 |
| Conductor cross-section: | 2.5 mm² |
| Connectable conductor cross-section: | 0 to 2.5 mm² |
| Connection type: | Screw terminal |
| Luminaire luminous efficacy: | 93 lm/W |
| Glow wire test according to IEC 60695-2-11: | 650 °C - 30 s |
| Photobiological safety according to EN 62471: | RG0 |
| Colour consistency (McAdam ellipse): | SDCM6 |
Features
Total harmonic distortion (THD)
27
Connectable conductor cross-section
0 to 2.5 mm²
HAB
TheLeda D SUL AL 14 Watt aluminium
Manufacturer
HAN
1020702
GTIN
4003468101162
Covering the luminaire with thermal insulation material possible
No
Connection type
Screw terminal
Type of wiring
Diploma
Beam angle
Wide beam 41-80°
Rated luminous flux according to IEC 62722-2-1
1235lm
Rated ambient temperature according to IEC62722-2-1
-25 to 45 °C
Operating device
Not required
Width
126 mm
Dimming 0-10 V
No
Dimming 1-10 V
No
Dimming DALI
No
Dimming DMX
No
Dimming DSI
No
Dimming GPRS
No
Dimming LineSwitch
No
Dimming mains voltage modulation
No
Dimming trailing edge
No
Dimming phase control
No
Dimming potentiometer (integrated)
No
Dimming RF
No
Dimming Sine Wave Reduction
No
Dimming Touch and Dim
No
Dimming Zigbee
No
Dimming depends on the control gear
No
Dimming manufacturer-specific
Yes
Dimming with push button
No
Dimming programmable
No
Color consistency (McAdam ellipse)
SDCM6
Color temperature
3000K
Color rendering index CRI
80-89
Version
Without
Suitable for surface mounting
Yes
Suitable for ceiling mounting
No
Suitable for flush mounting
No
Suitable for clamp mounting
No
Suitable for pendulum suspension
No
Suitable for podium/floor mounting
No
Suitable for rope system
No
Suitable for busbar mounting
No
Suitable for truss mounting
No
Housing color
Aluminum
Glow wire test according to IEC 60695-2-11
650 °C - 30 s
Height/Depth
127 mm
LED nominal current at constant current
0 to 10 mA
Power factor
0.95
Conductor cross-section
2.5 mm²
Luminaire with limited surface temperature D-mark
No
Luminaire luminous efficacy
93lm/W
Lamps
LED not replaceable
Light emission
Direct/indirect
Light color
White
Luminous flux
1235lm
Light distributor
Reflector
Light distribution
Symmetrical
Length
65 mm
Max. system performance
14W
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
Nominal voltage
230V
Surface
Powder coated
Brushed surface
Yes
Without dimming function
No
Photobiological safety according to EN 62471
RG0
Number of poles
4
Reflector
High gloss
Impact resistance
IK04
IP protection)
IP55
Protection class (NEMA)
4
Protection class
II
Voltage type
AC
Adjustability
Not adjustable
Cover material
Plastic transparent
Housing material
Aluminum
