Description
Features
Reviews

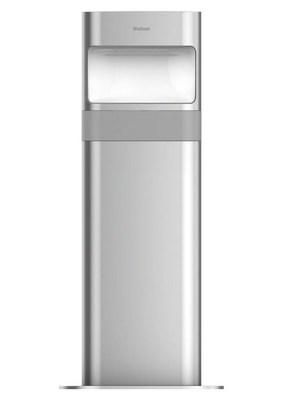

Design-oriented LED bollard light short with 8.5 W, light output frontal (spot), high-quality housing made of anodized aluminum extruded profile, high protection class IP 55 for outdoor installation, wireless networking, setting only possible via theSenda B with theSenda Plug, extremely efficient due to high light output, long-lasting LEDs: 50,000 hours service life
| Property | Value |
| Cover material: | Transparent plastic |
| Housing color: | Aluminum |
| Impact resistance: | IK04 |
| With light source: | yes |
| Protection class: | II |
| Light source: | LED not replaceable |
| Nominal voltage: | 230 V |
| Width: | 174 mm |
| Socket: | without |
| Material of the housing: | Aluminium |
| Protection class (IP): | IP55 |
| Type of light: | Bollard light |
| Operating device: | not required |
| Rated luminous flux according to IEC 62722-2-1: | 760 lm |
| Color temperature: | 3000 K |
| Color rendering index CRI: | 80-89 |
| Light color: | white |
| With operating device: | yes |
| With motion detector: | no |
| With light sensor: | no |
| Voltage type: | AC |
| With base plate: | yes |
| Surface: | powder-coated |
| LED nominal current at constant current: | 0 to 10 mA |
| Light distributor: | reflector |
| Protection class (NEMA): | 4 |
| Max. System power: | 8.5 W |
| Power factor: | 0.95 |
| Height/depth: | 401 mm |
| Length: | 90 mm |
| Type of wiring: | Termination |
| Number of poles: | 4 |
| Conductor cross-section: | 2.5 mm² |
| Connection type: | Screw terminal |
Features
With base plate
Yes
HAB
TheLeda D BL AL 8.5 Watt aluminum short
Manufacturer
HAN
1020705
GTIN
4003468101193
Connection type
Screw terminal
Type of lamp
Bollard light
Type of wiring
Diploma
Rated luminous flux according to IEC 62722-2-1
760lm
Operating device
Not required
Width
174 mm
Color temperature
3000K
Color rendering index CRI
80-89
Version
Without
Housing color
Aluminum
Height/Depth
401 mm
LED nominal current at constant current
0 to 10 mA
Power factor
0.95
Conductor cross-section
2.5 mm²
Lamps
LED not replaceable
Light color
White
Light distributor
Reflector
Length
90 mm
Max. system performance
8.5W
With operating device
Yes
With motion detector
No
With light source
Yes
With light sensor
No
Nominal voltage
230V
Surface
Powder coated
Number of poles
4
Impact resistance
IK04
IP protection)
IP55
Protection class (NEMA)
4
Protection class
II
Voltage type
AC
Cover material
Plastic transparent
Housing material
Aluminum
