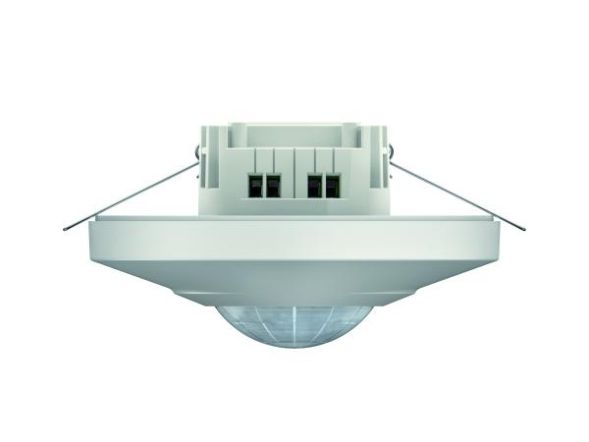

Motion detector for ceiling mounting with acoustic function, round detection area, automatic brightness-dependent control for lighting, mixed light measurement, brightness values and switch-off delay adjustable
| Property | Value |
| Depth: | 112 mm |
| Width: | 112 mm |
| Height: | 73 mm |
| Design: | Motion detector |
| Color: | white |
| Rated voltage: | 230 V |
| RAL number (similar): | 9010 |
| Material: | Plastic |
| Mounting type: | Flush-mounted |
| Response brightness: | 10 to 2000 lx |
| Protection class (IP): | IP40 |
| Max. switching capacity: | 2000 W |
| Type of voltage: | AC |
| Max. Range to one side: | 6 m |
| Scan angle: | 360 ° |
| Suitable for wall mounting: | no |
| Min. duty cycle: | 5 s |
| Max. Duty cycle: | 30 min |
| Creep-under protection/rear field monitoring: | no |
| Temperature: | -20 to 45 °C |
| Adjustable response brightness: | yes |
| Adjustable response sensitivity: | no |
| Max. range, frontal: | 6 m |
| Max. Inrush current: | 10 A |
| Sensor type: | passive infrared |
| Optimal installation height: | 2.5 m |
| Surface finish: | matt |
| Surface: | untreated |
| Material quality: | thermoplastic |
| Detection field diameter on floor: | 12 m |
| Control current: | 10 mA |
| Switch-off delay: | 1800 s |
| Horizontal detection angle: | 0 to 360 ° |
| Frequency: | 50 to 60 Hz |
| Halogen-free: | no |
| Constant light control: | no |
| HVAC control: | no |
| Forced switch-off: | no |
| Animal corridor: | no |
| Networkable: | yes |
| Staircase monitoring: | yes |
| Bypass switch: | no |
| Suitable for wireless transmission: | no |
| Remote controllable: | no |
| With signal unit: | no |
| Alarm function: | no |
| Teach function for response brightness: | yes |
| Dimming function with dimming insert: | no |
| Transparent: | no |
| With remote control: | no |
| Suitable for C load: | no |
| With DALI interface: | no |
| Extension input: | no |
| Forced switching on: | no |
| Suitable for ceiling mounting: | yes |
| Connection type: | Screw terminal |
| Antibacterial treatment: | no |
| Impact resistance: | IK04 |
| Min. Inrush current: | 0.1 A |
| Diameter: | 112 mm |
| Installation width: | 48 mm |
| Installation depth: | 38 mm |
| Installation diameter: | 48 mm |
| Min. depth of device box: | 46 mm |
Features
Color
White
Bridging switch
No
With signal unit
No
Response brightness
10 to 2000 lx
Forced shutdown
No
Max. inrush current
10 A
Scanning angle
360 °
Forced switching on
No
HAB
LUXA 103-100 UA WH white acoustic function
Manufacturer
HAN
1030045
GTIN
4003468101148
Dimming function with dimming insert
No
Alarm function
No
Connection type
Screw terminal
Response sensitivity adjustable
No
Response brightness adjustable
Yes
Antibacterial treatment
No
Version
Motion detector
Surface finish
Frosted
Width
112 mm
Diameter
112 mm
Installation width
48 mm
Installation diameter
48 mm
Installation depth
38 mm
Detection field diameter on floor
12m
Detection angle horizontal
0 to 360 °
Color
Remote controllable
No
Frequency
50 to 60 Hz
Suitable for C-load
No
Suitable for ceiling mounting
Yes
Suitable for wall mounting
No
Suitable for wireless transmission
No
HVAC control
No
Halogen free
No
Height
73 mm
Constant light control
No
Max. duty cycle
30 min
Max. range frontal
6m
Max. range to one side
6m
Max. switching capacity
2000W
Min. duty cycle
5s
Min. depth of the device box
46 mm
With DALI interface
No
With remote
No
Mounting type
Flush-mounted
Extension input
No
Nominal voltage
230V
Surface
Untreated
Optimal mounting height
2.5m
RAL number (similar)
9010
Impact resistance
IK04
IP protection)
IP40
Sensor type
Passive infrared
Voltage type
AC
Teach function for response brightness
Yes
Temperature
-20 to 45 °C
Depth
112 mm
Animal corridor
No
Transparent
No
Staircase monitoring
Yes
Creep protection/rear field monitoring
No
Networkable
Yes
Material
Plastic
Material quality
Thermoplastic
