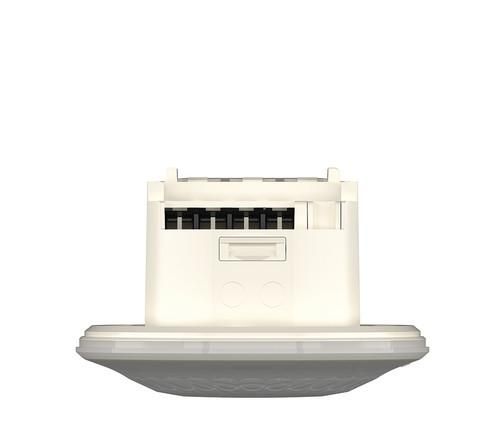

Passive infrared presence detector for ceiling mounting, flush-mounted or ceiling installation, round detection area 360°, diameter 12 m, (113 square meters) at 3 m installation height (walking across), diameter 5 m, (20 square meters) at 3 m installation height (sitting), 1 channel light (relay 230 V) and 1 channel presence (relay potential-free for HVAC control), thanks to protection class IP 54 also usable in damp rooms and outdoors (detection area outdoors 8 meters in diameter), remote control, parallel connection with other LUXA 103 or theMura Slave possible, switching capacity optimized for LEDs up to 400 W, semi- or fully automatic operation, integrated button input, with pulse function, teach-in function, test function and staircase light function, area restriction possible with cover clips, housing color white
| Feature | Value |
| Depth: | 80 mm |
| Width: | 80 mm |
| Height: | 62 mm |
| Design: | Presence detector |
| Color: | white |
| Rated voltage: | 230 V |
| RAL number (similar): | 9010 |
| Material: | Plastic |
| Mounting type: | Flush-mounted |
| Response brightness: | 5 to 1000 lx |
| Protection class (IP): | IP54 |
| Max. switching capacity: | 2300 W |
| Type of voltage: | AC |
| Max. Range to one side: | 6 m |
| Scan angle: | 360 ° |
| Suitable for wall mounting: | no |
| Min. duty cycle: | 15 s |
| Max. Duty cycle: | 30 min |
| Creep-under protection/rear field monitoring: | no |
| Temperature: | -25 to 55 °C |
| Adjustable response brightness: | yes |
| Adjustable response sensitivity: | yes |
| Max. presence range: | 50 m² |
| Max. frontal range: | 6 m |
| Max. Inrush current: | 10 A |
| Sensor type: | passive infrared |
| Optimal installation height: | 3 m |
| Surface finish: | matt |
| Surface: | untreated |
| Material quality: | thermoplastic |
| Detection field diameter on floor: | 113 m |
| Switch-off delay: | 15 s |
| Horizontal detection angle: | 0 to 360 ° |
| Frequency: | 50 Hz |
| Halogen-free: | yes |
| Constant light control: | no |
| HVAC control: | yes |
| Forced shutdown: | no |
| Animal corridor: | no |
| Networkable: | yes |
| Staircase monitoring: | yes |
| Bypass switch: | yes |
| Suitable for wireless transmission: | no |
| Remote controllable: | yes |
| With signal unit: | yes |
| Alarm function: | no |
| Teach function for response brightness: | yes |
| Dimming function with dimming insert: | no |
| Transparent: | no |
| With remote control: | no |
| Suitable for C load: | no |
| With DALI interface: | no |
| Extension input: | yes |
| Forced switching on: | no |
| Suitable for ceiling mounting: | yes |
| Connection type: | Plug-in terminal |
| Antibacterial treatment: | no |
| Impact resistance: | IK04 |
| Min. inrush current: | 0.01 A |
| Diameter: | 80 mm |
| Installation depth: | 50 mm |
| Min. depth of device box: | 61 mm |
