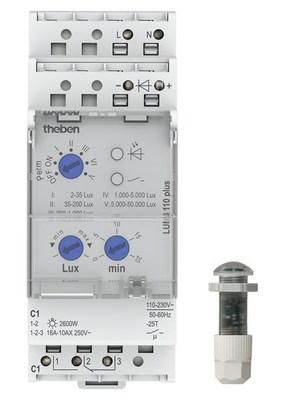

Analog twilight switch, external built-in light sensor included, adjustable on and off delay, display of the channel and switching status, DuoFix spring plug terminals, extended brightness range and adjustable delay time, 600 watt LED output, zero-crossing switching to protect the relay contact and lamp for a longer service life, permanent OFF and permanent ON function adjustable on the potentiometer, test function, switching brightness continuously adjustable
| Property | Value |
| Rated voltage: | 230 V |
| Rated frequency: | 50 to 60 Hz |
| Max. incandescent lamp load: | 3600 W |
| Max. fluorescent lamp load: | 3600 VA |
| Max. fluorescent lamp load (duo circuit): | 3600 VA |
| Max. Fluorescent lamp load (parallel compensated): | 1200 VA |
| Rated switching current: | 16 A |
| Brightness value setting range: | 2 to 50000 lx |
| With programmable night switch-off: | no |
| Button input: | no |
| Max. Cable length light sensor: | 100 m |
| Protection class light sensor: | II |
| Mounting type light sensor: | Built-in |
| Mounting type: | DIN rail |
| Width in pitch units: | 2 |
| Installation depth: | 69.2 mm |
| Protection class (IP): | IP20 |
| Protection class (IP), light sensor: | IP65 |
Features
Rated frequency
50 to 60 Hz
Max. fluorescent lamp load
3600 VA
HAB
LUNA110 plus 230V with built-in light sensor
Manufacturer
HAN
1100900
GTIN
4003468110010
Rated voltage
230V
Width in pitch units
2
Installation depth
69.2 mm
Mounting type
DIN rail
IP protection)
IP20
