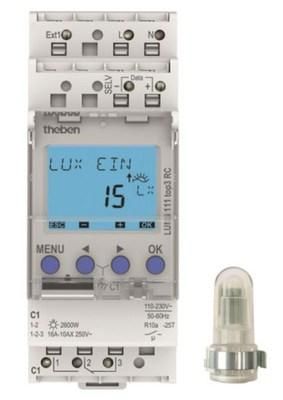

Digital twilight switch/light control device, 1 channel, separate surface-mounted light sensor (IP 55) included, 1-99,000 lx, external input, width 2 HP, app programming possible, secure transmission via optional Bluetooth Low Energy OBELISK top3, maximum protection against manipulation, programs can only be transferred from the app to the clock if the Bluetooth OBELISK top3 is plugged into the clock, 600 watt LED power, 800 amps/200 microseconds inrush current, low standby power, operating hour counter, DuoFix plug-in terminals, power reserve, OBELISK interface for PC programming
| Property | Value |
| Rated voltage: | 230 V |
| Rated frequency: | 50 to 60 Hz |
| Max. incandescent lamp load: | 3600 W |
| Max. fluorescent lamp load: | 3600 VA |
| Max. fluorescent lamp load (duo circuit): | 3600 VA |
| Max. fluorescent lamp load (parallel compensated): | 1200 VA |
| Max. Switching current (cos phi = 0.6): | 10 A |
| Rated switching current: | 16 A |
| Brightness value setting range: | 1 to 99000 lx |
| With programmable night-time switch-off: | no |
| Button input: | yes |
| Max. Cable length light sensor: | 100 m |
| Protection class light sensor: | II |
| Mounting type light sensor: | Wall mounting |
| Mounting type: | DIN rail |
| Width in pitch units: | 2 |
| Installation depth: | 69.2 mm |
| Protection class (IP): | IP20 |
| Protection class (IP), light sensor: | IP55 |
Features
Rated frequency
50 to 60 Hz
Max. fluorescent lamp load
3600 VA
HAB
LUNA111 top3 with surface-mounted light sensor
Manufacturer
HAN
1110130
GTIN
4003468110034
Rated voltage
230V
Width in pitch units
2
Installation depth
69.2 mm
Mounting type
DIN rail
IP protection)
IP20
